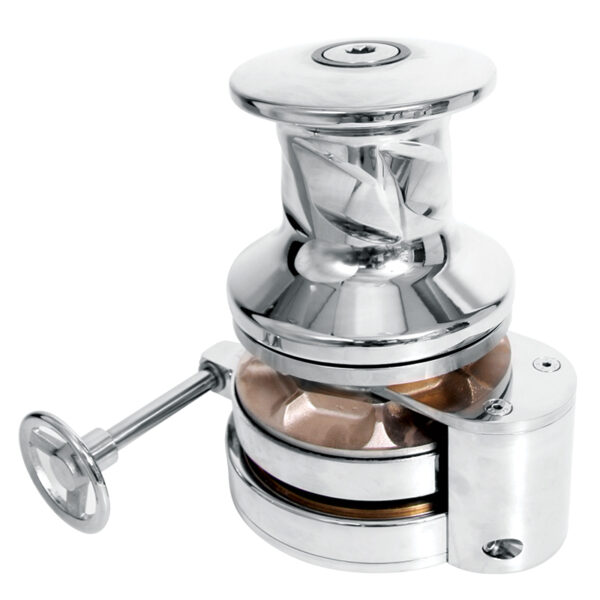

X5-VERTICAL WINDLASS Lofrans’
0.00฿
3000W/ Hydraulic
The “X” vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.
The standard features that you can meet in every X series windlass are:
→Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
→The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
→The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
→There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
→Manual override so that the chain or rope can be recovered manually in case of electric function failure.
Main Features
—Luxury 316 L Stainless Steel construction base and drum
—Indepent Gypsy and drum operation
—Manual chain release
—Manual override
—Chain counter magnet pre-installed as standard
—Anodised marine aluminium gearbox
—Heavy duty electric motor
—Control Box included in package
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE

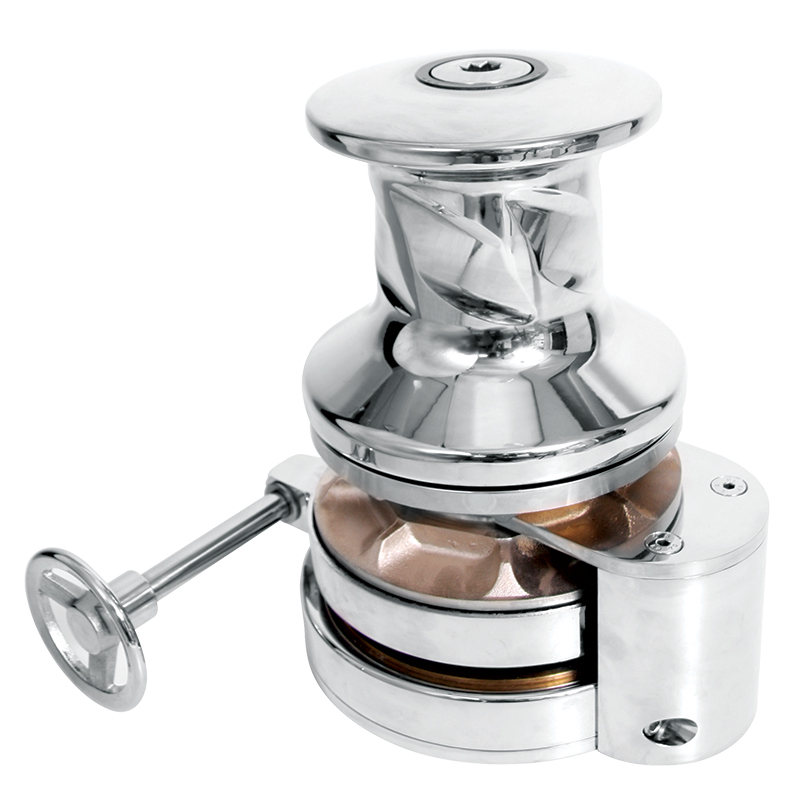

X5-Vertical Windlass 3000W/ Hydraulic
Product Description
Construction | 316 L Stainless Steel | |
Motor Size | 3000W | Hydraulic-8cc |
Power Supply (V) | 24 | – |
Maximum Pull (Kg) | 2700 | 2700 |
Working Load (Kg) | 550 | 650 |
Amps at Working Load (A) | 210 | – |
Line Speed at Working Load (m/min) | 17 | 21 |
Max Line Speed (m/min) | 33 | 21 |
Net Weight with Drum (Kg) | 100 | 85 |
Hydraulic Pressure (bar) | – | 200 |
Hydraulic Flow (lt/min) | – | 32 |
Control Box | Included in package |
Product Code
X5 | Code | Code | |
With Drum | 12mm, ISO4565/ 13mm, DIN 766 | 600089 | 602389 |
14mm | 600091 | 602390 |
*Non-standard configuration optional gypsies can be supplied separately.

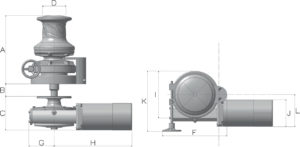

Product Dimensions
Model | A | B | C | D | F | G | H | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|
3000W | 385 | 60-90 | 200 | Ø132 | 365 | 152 | 449 | 264 | Ø152 | 339 | 190 |

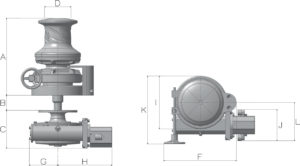

Model | A | B | C | D | F | G | H | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|
Hydraulic 8cc | 385 | 60-90 | 190 | Ø132 | 365 | 142 | 270 | 264 | 156 | 339 | 190 |
*Hydraulic version dimensions
Box includes:
*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
