Bilge Pumps

A bilge pump is a water pump used to remove bilge water. Since fuel can be present in the bilge, electric bilge pumps are designed to not cause sparks. Electric bilge pumps are often fitted with float switches which turn on the pump when the bilge fills to set level.

Showing 1–16 of 23 results

  • AUTOMATIC BILGE PUMP

    ฿0.00

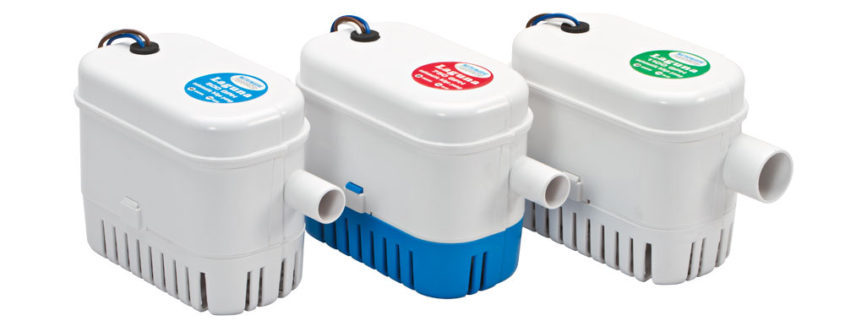

    Automatic Bilge Pumps

    500GPH/  750GPH/  1100GPH

    12V/  24V

    Laguna bilge pumps are equipped with a built-in electric controlled snap switch making it fully automatic. No float switch needed and no power used until pump turns on when water level rises. These pumps are durable and easy to install, and they offer boaters a sleek new design that has been tested to be reliable, efficient, and automatic operative in harsh saltwater and freshwater uses. Equipped with stainless steel shaft 316, and high-impact durable plastic housing.

    Main Feature

    *Compact, all-in-one unit

    *Snap sensing switch integrated into the pump body

    *No mercury

    *Removable clip on basket design

    *3-wire device can be run in auto or manual override mode.

    *No tools needed for maintenance

    *Extremely energy efficient

  • AUTOMATIC FLOAT SWITCH, DC 12V/24V, 15A max

    ฿0.00

    Automatic Float Switch, DC 12V/24V, 15A max

    This float switch is designed for the automatic control of electrically driven bilge pumps. Designed with a reliable rolling-ball and switch system that prevents rapid on/off cycling found on some switches and is safer than mercury switches. When water lifts the chamber buoy up to 6cm, the switch automatically turns the bilge pump on until the bilge is emptied. This automatic float switch has a plastic housing.

    Code 91549
    Power 12/24 V
    Fuse 15A max
    Material ABS plastic
    Dimensions L 11cm W 7cm H 6.5cm



  • BRASS DECK PUMP

    ฿0.00

    Brass Deck Pump

    12V/  24V

    Ideal for deck washing, bilge pumping and pressurized systems
    Self priming up to 3/5 mt. vertical lift. All version available upon request with SUPER nitrile impeller.
    Cannot run dry.

  • DIAPHRAGM BILGE HAND PUMP

    ฿0.00

    Diaphragm Bilge Hand Pump

    Ideal for use where battery power is not available or as a backup to electric pumps, the diaphragm bilge hand pump is easy to use and has a capacity of 6,5 gallons at 60 strokes. It features a built-in non-return valve, which can be easily removed with the quick release clip and two-position handle for convenient use, depending on your requirements. Additionally, its outlet connection allows the use of either a 3/4” or a 1” hose.

    Code: 31342

  • DIAPHRAGM PUMP

    ฿0.00

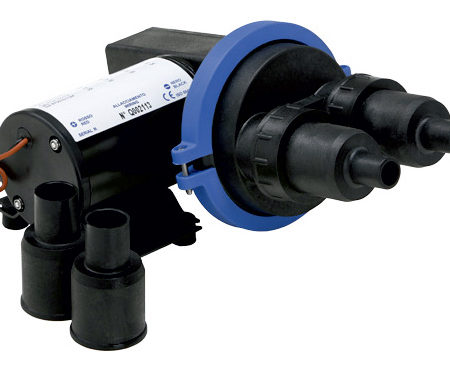

    Super Compact Diaphragm

    12V/ 24V

    The new modern diaphragm pump that can be set up in several applications and with different pump motor configurations.It is easy to install as a bilge pump in any leisure craft or anywhere after the drain outlet in the waste water system or directly in the Matromarine waste water tank . No filters required, the pump can run dry, and also can handle a mixture of air and water without difficulty. Perfect for installation in tight spaces, the SUPERCOMPACT diaphragm pump can be incorporated into a small boat bilge space. Available in version with double 19 mm port connection and 25 mm port connection. Equipped with straight port connections.

  • ECO DECK PUMPS

    ฿0.00

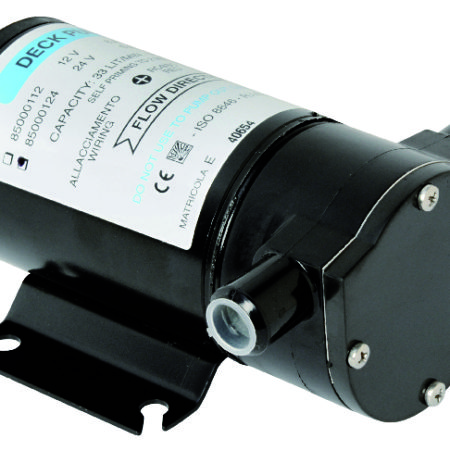

    ECO Deck Pumps

    12V/   24V

    Ideal for deck washing, bilge pumping and pressurized systems
    Self priming up to 3/5 mt. vertical lift. All version available upon request with SUPER nitrile impeller.
    Cannot run dry.

  • ELECTRIC SILENT CONVERSION KITS PUMP

    ฿0.00

    Electric Silent Conversion Kits Pump

    12V/  24V

    Available for:

    • Laguna Bowls
    • Luxury/Deluxe Bowls

    Converts compact and comfort bowl of most toilets with 4 bolt fixing bowls and bolt centres on a 95 mm (3 3/4”) diameter circle such as matromarine, Jabsco, tmc, Raritan, Rm69, Johnson pump, Thetford, Lalizas. included kit contains all necessary parts, such as stainless steel bolts and washers, hose and gaskets and control panel in the electric std v.

  • ENVIRONMENT ELECTRONIC LEVEL SWITCH E.E.L.S

    ฿0.00

    Code: 31010

    The Environmental electronic level switch is the latest in innovation, as it operates with an electronic sensor, instead of the air pressure or any moving parts. It has been designed to sense the water level with great precision and accuracy, thus offering you the best possible result. One of the most important advantages of the E.E.L.S is that it is environmentally friendly. Lalizas designed this switch to operate only when it senses water. If there are quantities of hydrocarbons, such as oil, it switches the bilge pump off, thus preventing any pollution. Mounted vertically to the hull, the E.E.L.S is connected inline with bilge pump(s) even of higher potency. Also its compact design allows a far greater freedom of movement. On the other hand, in inboard vessels the minimum space it occupies leaves more loading space and the hatch space intact. Other features of note are the insulated electrical contacts, casing from durable Nylon and ABS plastic, 100% impermeability to water.

    Technical characteristics

    The Electronic Level Switch can be used with any bilge pump up to 20A. The Electronic Level Switch has the following electrical characteristics:

    Voltage: 12V DC

    Connection to the main circuit: Inline

    Maximum Amperage: 20A

    How to connect the Electronic Level Switch

    Connect a switch for the activation of the automatic operation of the bilge pump inline to the positive pole of the battery. You should also connect inline a fuse, according to the amperage of the bilge pump and up to 20A max (See manufacturer’s instructions). The wires of the Electronic Level Switch which are connected to the poles of the battery are RED (+) and BLACK (-). The other pair of wires, BLACK (-) and BLUE (+) are connected to the negative and positive pole of the bilge pump respectively.

    ATTENTION!

    It is necessary that you follow the polarity when making the connections, otherwise you run the risk of producing a short circuit leading to damage your Electronic Level Switch. Please check the polarity before activating your new Float Switch.

    WIRING

    —Black: Negative (-)

    —Red – Blue: Positive (+)

    —Black – Red: Connection to the battery

    —Black – Blue: Connection to the Bilge Pump

  • FLUSH PUMP

    ฿0.00

    Diaphragm Flush Pump

    12V/ 24V

    Newest generation of silent pumps equipped with 4 diaphragms
    Indispensable equipment to supply water on all series of electrical silent toilets.

    Delivery: 12 litres.

    Indispensable component for inlet and discharge pipes of manual and electric toilets installed
    below the waterline. Manual and electric marine toilets flushed with sea or river water require
    connections through the hull below water level

  • GEAR AND OIL CHANGER PUMP KIT

    ฿0.00

    Gear and Oil Changer Pump Kit

    Self priming electric gear pump particularly suitable for transfer oil, diesel, antifreeze, water and viscous liquids. Available also in oil changer kit version equipped with 180 cm long wires with end clamp ,fuse, and 2 hoses 6 and 8 mm. Can run dry. Pump body in PTFE.

  • GREY AND BLACK DIAPHRAGM WATER PUMP

    ฿0.00

    12V/   24V

    A modern diaphragm pump that can be set up in several applications and with different pump motor configurations.It is easy to install as a bilge pump in any leisure craft or anywhere after the drain outlet in the waste water system or directly in the Matromarine waste water tank . No filters required, the pump can run dry, and can also handle a mixture of air and water without difficulty. Perfect for installation in tight spaces, the Laguna shower drain pump can be incorporated into a small boat bilge space. Available in version with double 19/25 mm port connection and 38 mm port connection. 38 mm version is equipped with straight and 360 degrees angled rotational port connection.

  • HOSE PUMP|MANUAL SUCTION

    ฿0.00

    Hose Pump, Manual Suction

    —Length 160cm

    —White

    Code Title Diameter Length Hose Material Hose Hall Thickness Flow Rate
    70002 Hose Pump, Manual Suction, Ø12,5mm x 160cm, Transparent 12,5mm 160cm PVC 2mm 3.5 GPM
    70003 Hose Pump, Manual Suction, Ø25mm x 160cm, Transparent 25mm 160cm PVC 3mm 10 GPM
  • MAXI DECK PUMP

    ฿0.00

    Maxi Deck Pump

    12V/  24V

    Ideal for deck washing, bilge pumping and pressurized systems
    Self priming up to 3/5 mt. vertical lift. All version available upon request with SUPER nitrile impeller.
    Cannot run dry.

  • PUMP DIAPHRAGM

    ฿0.00

    Pump Diaphragm

    Code Model Flow Rate Length (mm) Width (mm) Height (mm)
    196861 24V 19 L/min 300 160 130
    196862 12V 19 L/min 300 160 130
  • SERVICE KIT for HAND BILGE PUMP

    ฿0.00

    Service Kit for Hand Bilge Pump (31342)

    (includes diaphragm, flapper valves, gasket)

    Code: 31399

  • SUBMERSIBLE AUTOMATIC BILGE PUMP

    ฿0.00

    Submersible Automatic Bilge Pump

    Code: 31150

    GPH: 600

    The Submersible Automatic Bilge Pump combines quality and ease of use in one device. It has a built-in automatic float switch which activates the pump when the bilge water rises, thereby allowing the pump to operate even when the boat is unattended. The pumping capacity is 600GPH through a 19mm (3/4”) hose. The pump also features a manual test button that allows you to test the level switch, as well as, the pump. Additionally, it has a snap on strainer base making installation and maintenance simple. The pump housing is made of durable ABS plastic. 12V DC. Fuse 10A.
