Marine Compass 102 (Ever Trust)

Our MARINE COMPASSES are suitable for most pleasure boat application.
The various installation matched with unlimited heel freedom for the card of these compasses is suitable for usage under any condition.
Hermetically sealed and liquid-filled spherical compass capsules are ideal for smooth and fast damping action.
The expansion diaphragm of capsules is for bubble-free use under the temperature of -40°C to 60°C
(-40°F to 140°F).

All models are adopted dual ALNICO-5 magnets on card, and with built-in compensators and supplied with 12V lighting system for night illumination.

Wide Angle Operation System

This system is specially designed to function with stability under extreme vibration.
Precision is assured to withstand for constant pounding to be inherent in power boating.
Allows tilting up to about 30 degrees.

Suitable for high-speed runabout and cruiser.

Shock Absorber

Specially built pivot and jewel assure precise suspension and the longest life of the unit.
All models are equipped with shock absorbing system used in aircraft compass.

2 Kinds of Card

 Flat Card No. 970-C                       Conical Card No. 970-F

—Durable plastic housing and detachable sunshade hood, with built-in compensators and lighting system.

—Size: 185X170X170mm

—Weight:1,100g

Available Colors:

      Black                                                       Metallic Blue                                                  Ivory

Explorer Compass Features

            *2 3/4″ Direct Reading Dial

            *Easily Installed, Fits 3″ Instrument Hole.

            *Bezels Styled to Match Popular Gauge Packages

            *12V Night Illumination

            *Viewing is adjustable to 30 degrees

            *Choice of Traditional Black or Designer White Colors

            *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

            *Built-in Compensators to Easily Adjust for Deviation

            *Hi-Temperature Construction

            *100% Repairable

            *Exclusive 5-Year Warranty

 Replacement Lighting:

            *12 Volt: EX-0057-2

            *24 Volt: EX-0278

            *12 Volt Light & Wire Assembly: EX-0056 ASY

Mounting Gasket: EX-0061

Approx. Shipping Weight: 1 lb. (454g)

Notes: Comes standard with 12 volt lighting. 24 volt lighting option is available.

 Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

Explorer Compass Features

             *2 3/4″ Easy to Read Direct Reading Dial

             *Easily Installed, Fits 3.75″ (9.53 cm) Mounting Hole.

             *Internal Green Night Illumination

             *Built-in Compensators to Easily Adjust for Deviation

             *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

             *Powerful DirectiveForce Magnets for Fast Heading Lock-on

             *Movable Sun Shield

             *High Temperature Composite Construction for Extended Operating Range

             *100% Repairable

             *Exclusive 5-Year Ritchie Warranty

Protective Cover: E-50-C

Replacement Lighting:

          *6 Volt: EX-0099-2

          *12 Volt: EX-0005-2

          *24 Volt: EX- 0098

          *12 Volt Light & Wire Assembly: EX-0022 ASY

Mounting Gasket: EX-0039

Approx. Shipping Weight: 1 lb. (454g)

Notes: Comes standard with 12 volt lighting. 6 & 24 volt lighting options are available.

Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

Explorer Compass Features

                *2 3/4″ Easy to Read Direct Reading Dial

                *Compact Low-Profile Design

                *Quick Push-Button Removal of Compass Module for Storage and Security

                *Choice of Colors

                *Internal Green Night Illumination

                *Built-in Compensators to Easily Adjust for Deviation

                *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

                *Powerful DirectiveForce Magnets for Fast Heading Lock-on

                *Movable Sun Shield

                *High Temperature Composite Construction for Extended Operating Range

                *100% Repairable

                *Exclusive 5-Year Ritchie Warranty

Protective Cover: E-50-C

Replacement Lighting:

• 6 Volt: EX-0099-2
• 12 Volt: EX-0005-2
• 24 Volt: EX- 0098
• 12 Volt Light & Wire Assembly: EX-0022 ASY

Approx. Shipping Weight: 1 lb. (454g)

Notes: Comes standard with 12 volt lighting. 6 & 24 volt lighting options are available.

Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

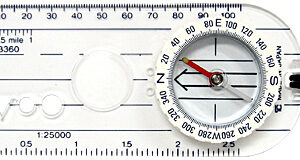

Field Compass No.141

—Size: 60x138x12mm
—With Lens
—Four map-drawing Symbols
—Scales 1:25000,1:50000

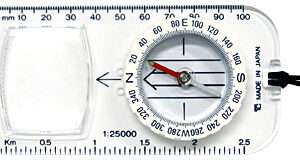

Field Compass No. 162

—Size: 100x55x11mm / 34g
—Material: Acrylic
—Large magnifying glass: 3x
—Easy to read N-Line in orange
—Luminous needle tip and points
—Scale 1:1, 1:25000、1:50000

Globemaster Shock-Mount Binnacle Mount Compasses:

Globemaster shock mount compasses are equipped with an anti-vibration feature which isolates the compass unit from damaging shock or hull vibrations. Shock-mounted binnacle models should be installed in enclosed bridge decks or pilot houses.

*Easily Installed.

*5″ Models have a choice of 2 degree, 2 degree with points or 5 degree card.

*Built-in Semi-Circular Compensators

*Choice of Green or Red lighting in 12, 24, or 32 Volts

*90 Degree Lubber Lines for Easy Reading

*100% Repairable

*Exclusive 5-Year Ritchie Warranty

When ordering a Shock-Mount Globemaster specify Card Style and Night Light Color/Voltage (12, 24, or 32 volt).

Replacement Lighting:

*(12V Green) SH-0176 XSP

*(12V Red) SH-0174 XSP

*(24 Green) GM-0093 XSP

*(24 Red) GM-0096

Globemasters built before 1996, see the service manual page 7-33

Approx. Shipping Weight: 7 lbs. 12 oz. (3.52 kg)

Globemaster Shock-Mount Binnacle Mount Compasses:

Globemaster shock mount compasses are equipped with an anti-vibration feature which isolates the compass unit from damaging shock or hull vibrations. Shock-mounted binnacle models should be installed in enclosed bridge decks or pilot houses.

*Special Anti-Vibration Mount Isolates Dial to protect Pivot and Jewel

*6″ Models have a choice of 5 degree Card or 2 degree with points.

*Easily Installed.

*Hardened Steel Pivot and Sapphire Jewel Movement

*Built-in Semi-Circular Compensators

*Choice of Green or Red lighting in 12, 24, or 32 Volts

*90 Degree Lubber Lines for Easy Reading

*100% Repairable

*Exclusive 5-Year Ritchie Warranty

When ordering a Shock-Mount Globemaster specify Card Style and Night Light Color/Voltage (12, 24, or 32 volt).

Replacement Lighting:

• (12V Green) SH-0176 XSP
• (12V Red) SH-0174 XSP
• (24 Green) GM-0093 XSP
• (24 Red) GM-0096 XSP

Globemasters built before 1996, see the service manual page 7-33

Approx. Shipping Weight: 12 lbs. (5.44 kg)
