Chain/ Chain Stopper

Lofrans’ founded in Monza/Italy in1966 and since then has been dedicated to designing and manufacturing windlasses and anchor management solutions that combine top performance, absolute safety and style.

For many decades Lofrans’ enriches the market with innovative solutions, such as the Automatic Free Fall and the Control Box, and offers an impressive line-up of high quality products for boats and yachts from 6m. to 50m (20ft – 160 ft).

Now Lofrans’ production and logistics processes are massively upgraded with cutting-edge IT systems and new automated warehouses.

-Quality
-Safety
-Reliability

Showing all 5 results

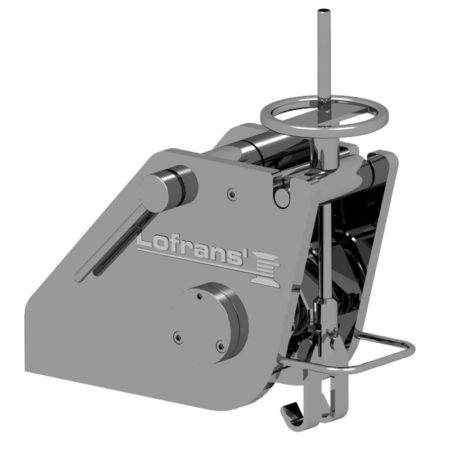

  • CHAIN ROLLER-STOPPER WITH TENSIONER Lofrans’

    ฿0.00
    The chain stopper is installed between the windlass and the bow roller in order to take the load off the windlass, either when the yacht is anchored or tensioning the anchor chain when the anchor is stowed. Windlasses which have two gypsies or a gypsy and a drum, need the chain stopper in order to isolate the one gypsy and either work with the other gypsy or with the drum.
    *Stainless steel

    *Chain stopper 14-16 mm Stud link

    Main Features

    *Chain stopper is designed to be used with chain size 14mm or 16mm stud link chain and 16mm normal chain

    *This model provides an increased safety by holding and blocking the chain and the anchor at the same time

    *AISI 3 16L Stainless Steel

    *Integrated devils claw for taking up the chain tension off the windlass

    Available for:

    • Ercole- Vertical Windlass
    • Ercole- Horizontal Windlass
    • Super Ercole- Horizontal Windlass

    *The chain line needs to be parallel to the chain stopper

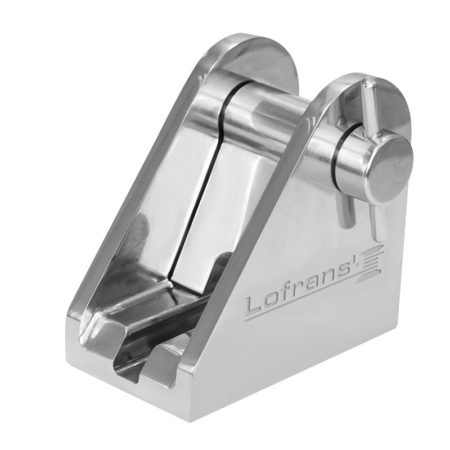

  • CHAIN STOPPER Lofrans’

    ฿0.00

    Chain stopper 12-13-14 mm for normal chain

    The chain stopper is installed between the windlass and the bow roller in order to take the load off the windlass, either when the yacht is anchored or tensioning the anchor chain when the anchor is stowed. Windlasses which have two gypsies or a gypsy and a drum, need the chain stopper in order to isolate the one gypsy and either work with the other gypsy or with the drum.

    ♦Chain stopper is designed to be used with the chain size 12-13-14mm normal chain

    ♦This model provides an increased safety by blocking the anchor chain

    ♦AISI 3 16L Stainless Steel

    Available for:

    ⇒X3 Aan Project 1500-Vertical

    ⇒X3.5 Vertical Windlass

    ⇒X4 & Project 2000 Vertical Windlass

    ⇒X5 Vertical Windlass

    *The chain line needs to be parallel to the chain stopper

  • GALAXY 503

    ฿0.00

    Hand Held Remote Control Chaincounter GALAXY 503

    This remote chain counter model GALAXY 503 has been specifically designed to give the full control in anchoring. It’s reliable and practical instrument, technologically advanced, specifically design for use in marine environments. The external casing, rated with IP66 and supplied with waterproof plug and socket rated IP67. The extending flexible cable (approximately 4 meter) give maximum freedom on board during anchoring maneuvering. Provided with an evolved microprocessor that offers the series of advantage for full control of the anchoring.

    —Chain speed indicator/ mooring length in meters or feet

    —Voltage Indicator

    —Up alarm sensor

    —Switch on button/ Key tones adjustment

    —High vision LCD display/ Backlit display screen/ Eight level of contrast

    —Six language menu (IT, EN, FR, DE, ES, GR)

    —Able to control free fall windlasses

    —Parallel connection

    Product Description

    Code                                                                                       600015
    Command transmission                                                    Wire
    Number of button                                                                 3
    Voltage                                                                            12-24Vdc
    Operative temperature                                                   -10: +60
    IP protection rated*                                                             66
    Max contacts amperage (A)                                                 2
    Weight (gr)                                                                           710
    Dimension (mm)                                                             155x65x45
  • GALAXY 703

    ฿0.00

    Radio Control Chaincounter GALAXY 703

    Without cable ties, plug or panels and with load always perfect by rechargeable battery, the radio chain counter GALAXY 703 gives finally all the freedom of manoeuvres and the comfort of reading in the anchoring operations.

    —Chain speed indicator/ mooring length in meters or feet

    —Voltage Indicator

    —Up alarm sensor

    —Switch on button/ Key tones adjustment

    —High vision LCD display/ Backlit display screen/ Eight level of contrast

    —Six language menu (IT, EN, FR, DE, ES, GR)

    —Able to control free fall windlasses

    —Parallel connection

    Product Description

    Code                                                                                         600016
    Command transmission                                                   Remote
    Number of button                                                         3 (Transmitter)
    Voltage                                                                      12-24Vdc (Receiver)
    Operative temperature                                                   -10: +60
    IP protection rated*                                                    66 (Transmitter)
    Max contacts amperage (A)                                          2 (Receiver)
    Weight (gr)                                                                           480
    Dimension (mm)                                                     155x65x45 (Transmitter)

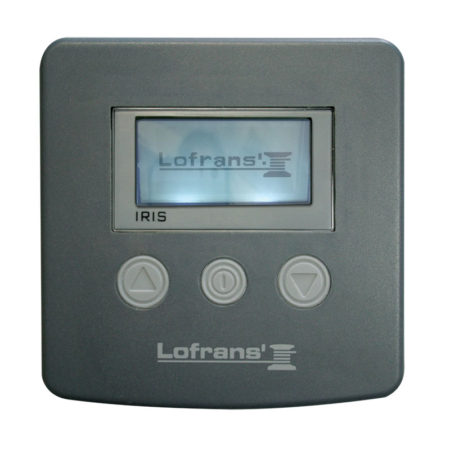

  • IRIS CHAIN COUNTER Lofrans’

    ฿0.00

    Panel Chaincounter IRIS

    This fly bridge chain counter IRIS is technologically advanced instrument with an elegant and ergonomic design makes it suitable for all type of boat cockpits. IRIS is supplied with an evolved microprocessor, with different operations allowing an optimum anchoring.

    *Chain speed indicator / mooring length in meters or feet

    *Voltage indicator

    *Up alarm sensor

    *Switch on button / Key tones adjustment

    *High vision LCD display / Backlit display screen / Eight level of contrast

    *Six language menu ( IT, EN, FR, DE, ES, GR)

    *Able to control free fall windlasses

    *Parallel connection

    *When installed
