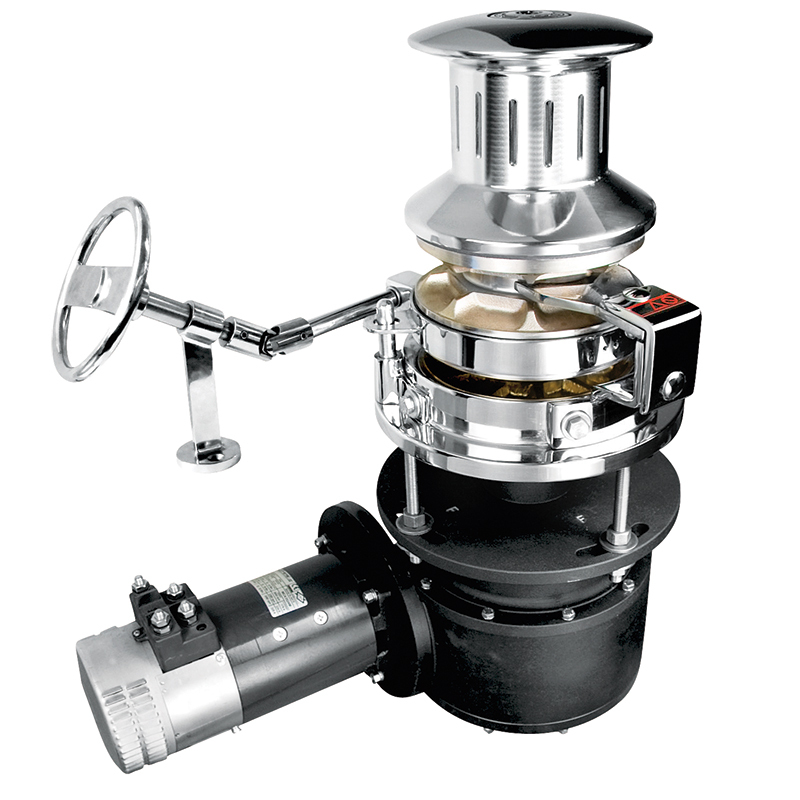

ERCOLE- VERTICAL WINDLASS Lofrans’

฿0.00

3500W/  4000W/  5500W/  Hydraulic- 11c

Main Features

—Under-deck compact dimensions

—Construction in mirror polished AISI 3 16L stainless steel

—High torque latest generation electric motor able to provide the power needed in all marine conditions

—Band brake to assist in chain control, thanks to an easy-to-manage large handwheel

—Special high-grip drum with independent rotation from the Gypsy, for warping function

—Indepent Gypsy and drum operation

—Manual chain release

—Manual override to recover the chain and anchor in case of electrical failure

—Internal ratchet to prevent chain jams into the chain cocker which could damage the deck

—Chain counter support integrated by the sensor inserted in the base and the magnet in the Gypsy

—Available also in counter clockwise rotation

—High efficiency Lofrans planetary-worm screw gearbox made in anodised black aluminium with gears made in high mechanical strength material

—Heavy duty electric motor

—Power: DC, AC and hydraulic

—Available in custom versions

Categories: ,

Description

Ercole- Vertical Windlass 3500W/  4000W/  5500W/  Hydraulic- 11c

Product Description

Contruction 316 L Stainless Steel
Motor Size 3500 W 4000W 5500W Hydraulic-11cc
Power Supply (V) 24 230-400 230-400 –
Maximum Pull (kg) 4500 4500 5000 5000
Working load (kg) 1000 1000 1200 1200
Amps at Working Load (A) 240 – – –
Line Speed at Working Load (m/min) 12 13 13 14
Max Line Speed (m/min) 20 13 13 14
Net Weight with Drum (kg) 180 180 200 165
Hydraulic Pressure (bar) – – – 200
Hydraulic Flow (lt/min) – – – 40
Control Box Included in package Switch available separately

Product Code

ERCOLE VERTICALE Type** Code Code Code Code
With Drum 14 mm CW 600080 600082 * 602523
16 mm CW * * 600409 602525
14 mm CCW 600081 600083 * 602524
16 mm CCW * * 600408 602526

*Non-standard configuration optional gypsies can be supplied separately.

**CW: the windlass pulls clockwise

**CCW: the windlass pulls counter clockwise

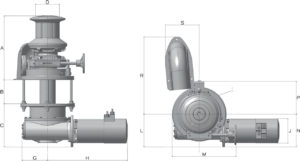

Product Dimensions (mm)

Model A B C D G H I J L M N P R S
3500W 400 150 272 150 160 502 340 Ø158 205 405 220 205 min490-max600 min200-max230
4000W 400 150 272 150 160 502 340 Ø158 205 405 220 205 min490-max600 min200-max230
5500W 400 150 272 150 160 502 340 Ø158 205 405 220 205 min490-max600 min200-max230

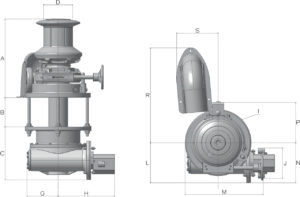

Model A B C D G H I J L M N P R S
Hydraulic 11cc 400 150 272 150 160 290 340 156 205 405 205 205 min490-max600 min200-max230

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual

Please contact us for additional detailed documentation.
