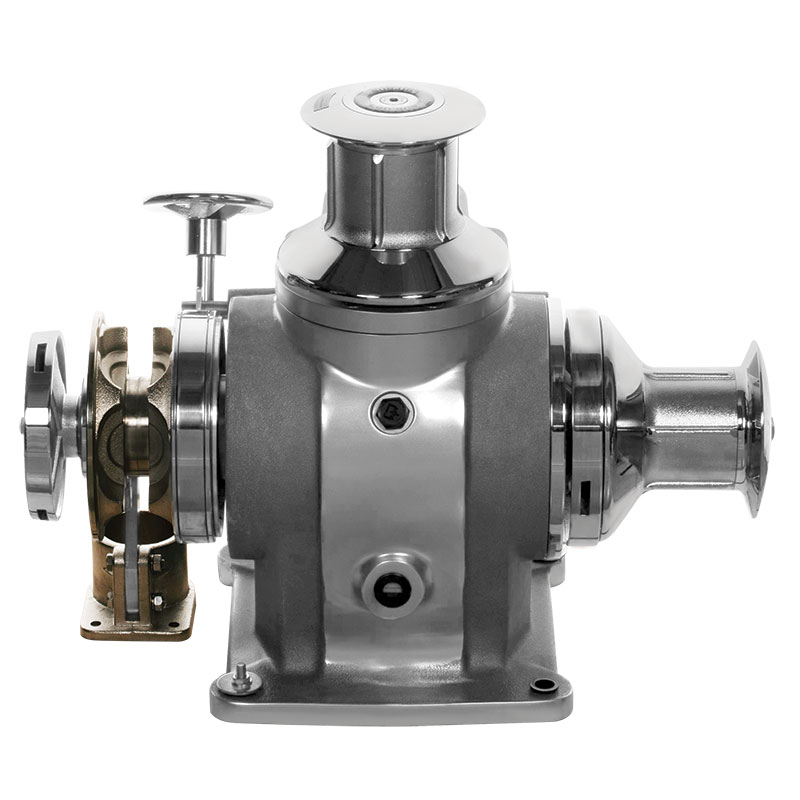

TITAN- HORIZONTAL WINDLASS Lofrans’ (Type A Anodised Aluminium)

0.00฿

2300W/  3600W/  Hydraulic

Type A- Anodised Aluminium

Main Features

—Marine aluminium anodised body

—Available in white polyester coating

—Independent Gypsy and drum operation

—Manual chain release

—Manual override

—Heavy duty rated IP66 electric motor

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

Titan- Horizontal Windlass 2300W/  3600W/  Hydraulic

Product Description

Construction Anodised Aluminium White Aluminium Anodised Aluminium
Motor Size 2300 W 3600 W 3600 W Hydraulic- 9cc
Power Supply (V) 24 230-400 230-400 –
Maximum Pull (Kg) 2800 2800 2800 3400
Working Load (Kg) 550 650 650 700
Amps at Working Load (A) 140 – – –
Line Speed at Working Load (m/min) 10 11 11 11
Max Line Speed (m/min) 18 11 11 11
Net Weight with Drum (Kg) 115 115 115 95
Hydraulic Pressure (bar) – – – 200
Hydraulic Flow )lt/min) – – – 32
Circuit Breaker (available separately) 187333 – – –
Control Box Included in package Switchboard available separately –

Product Code

TITAN Model Code Code Code Code
W/ Drum 12 mm, ISO 4565/ 13 mm, DIN 766 Type A 404724 * 600846 602423
14 mm, DIN 766 600072 600847 * 602424
12 mm, ISO 4565/ 13 mm, DIN 766 Type B 428938 * * 602468
14 mm, DIN 766 426415 * * 602469

**Available also in Type C, D…

*Non-standard configuration optional gypsies can be supplied separately.

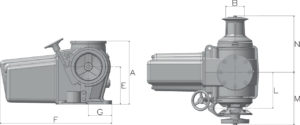

Product Dimensions (mm)

Model A C D E F G H L M N
2300W 330 465 Ø104 193 590 120 185 185 270 290
3600W 330 465 Ø104 193 590 120 185 185 270 290
Hydraulic 330 465 Ø104 193 590 120 185 185 270 290

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
