The range of horizontal anchor windlasses are suitable for boats from 18 up to 150 feet offering the best performance and functionality, when there is adequate deck space or if the chain locker has limited size or accessibility.They are simple to use, reliable, with their classic and timeless style making them perfect for many vessels, especially for the charter business.

Material and finish, marine grade aluminium alloy: Our horizontal anchor windlasses are produced by using marine glade aluminium alloy. The body is polished and anodised. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodised aluminium. Some models are available with a painted white polyester coating.

Main Features

—Marine aluminium anodised body

—Indepent Gypsy and drum operation

—Manual chain release

—Manual override

—Heavy duty rated IP66 electric motor

—Control Box included in package

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

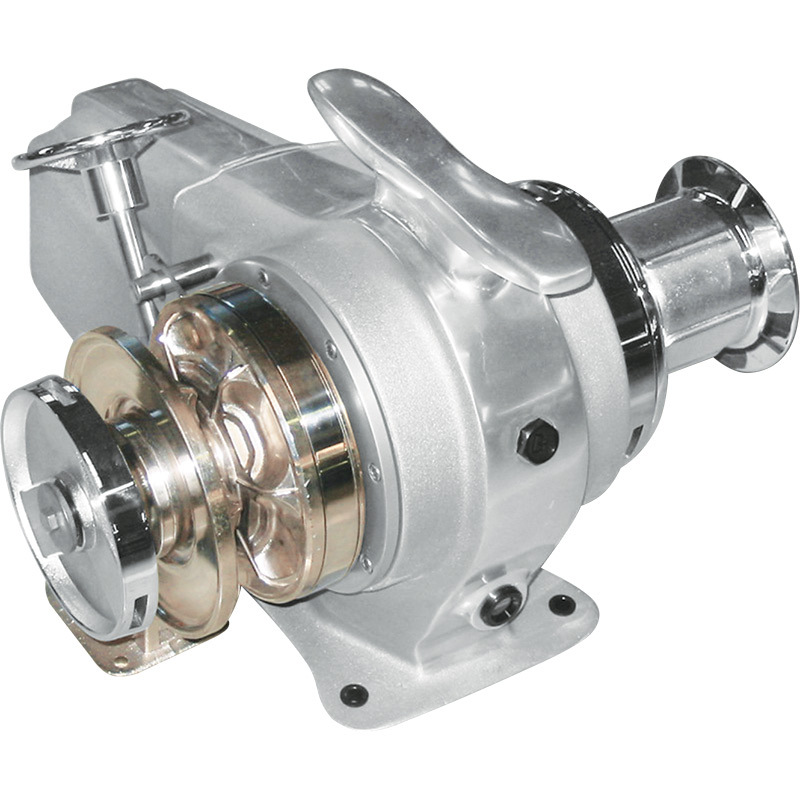

Falcon- Horizontal Windlass 1700W

Product Description

Contruction Anodised Aluminium
Motor Size 1700W
Power Supply (V) 12 24
Maximum Pull (kg) 1700 1800
Working load (kg) 290 290
Amps at Working Load (A) 210 100
Line Speed at Working Load (m/min) 14 15
Max Line Speed (m/min) 33 33
Net Weight with Drum (kg) 55 55
Circuit Breaker (available separately) 187334 187332
Control Box Included in package

Product Code

FALCON Code Code
With Drum 10 mm, DIN 766 600063 600067
100 mm, ISO 4565 220293 418511
12 mm ISO 4565/ 13 mm DIN 766 404732 404733

*Non-standard configuration optional gypsies can be supplied separately.

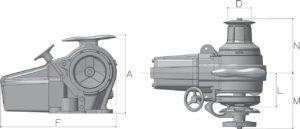

Product Dimensions (mm)

Model A D F L M N
1700W 340 Ø104 500 147 240 235

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
