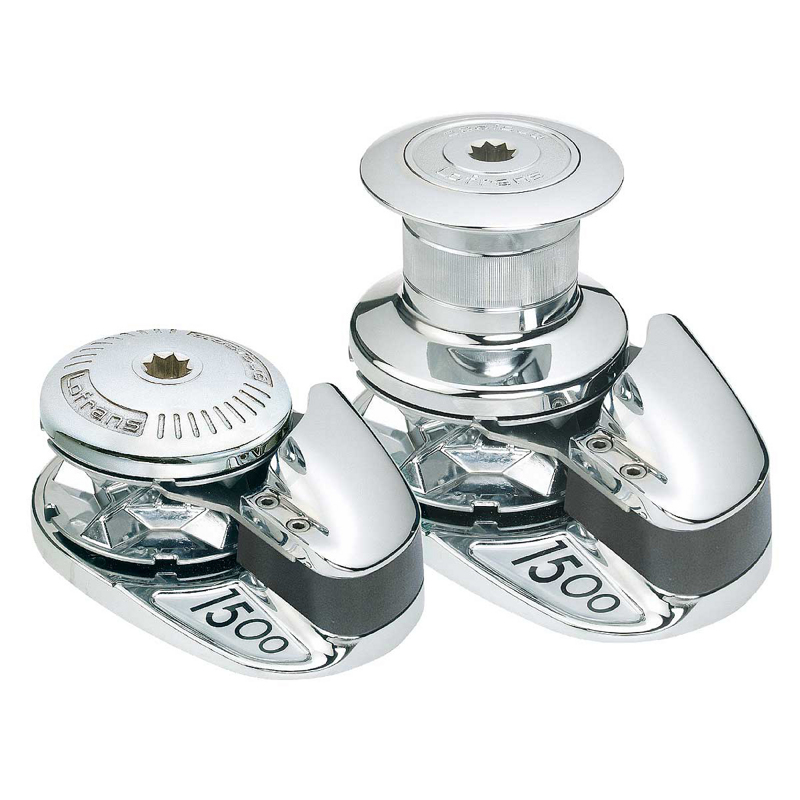

PROJECT 1500- VERTICAL WINDLASS Lofrans’

0.00฿

1500W

The “Project” windlasses can be installed in sail and motor boats from 6m to 27m in length. These windlasses are considered to be an elite product line as they are developed to provide high performance, easy installation and maintenance. Another feature that is a milestone for Lofrans’ is the internationally pattended motor which includes two solenoids. Also they feature a sensor and a magnet for an easy connection to the chain counter.

The motors of the Project windlasses are designed specifically to provide high torgue in every anchoring situation and their anchoring power can reach 45m / min. In case of function failure of the solenoids, there is the ability to bypass the solenoid with a connection to the terminal “E” and lift up the anchor.

All motors have IP66 rate, their body has double zincates and they are painted with a polyester coating. Also, they are sealed by a sequence of seals in order to prevent water intrusion.

Main Features

—Luxury chromed bronze base and drum

—With drum or Low profile

—Indepent Gypsy and drum operation

—Rope and chain combination Gypsy

—Manual chain release

—Manual override

—Rope chain management by the spring loaded arm

—Chain counter magnet pre-installed as standard

—Heavy duty two speed built in solenoids IP66 rated electric motor

—Anodised marine aluminium gearbox

—Control Box build in

Out of stock

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
Categories: ,

Project 1500W- Vertical Windlass

Product Description

Contruction Chromed bronze
Motor Size 1500 W
Power Supply (V) 12 24
Maximum Pull (kg) 1600 1695
Working load (kg) 270 270
Amps at Working Load (A) 180 90
Line Speed at Working Load (m/min) 14 15
Max Line Speed (m/min) 32 32
Net Weight Low Profile (kg) 36 36
Net Weight with drum (kg) 39 39
Circuit Breaker (available separately) 187333 187332
Control Box Build in

Product Code

PROJECT 1500 Code Code
With Drum 8 mm, ISO 4565/ DIN 766 14 mm, 3-strand 187312 600593
10 mm, DIN 766 16 mm, 3-strand 602094 602091
10 mm, ISO 4565 16 mm, 3-strand 472400 187314
12 mm, ISO 4565/ 13 mm, DIN 766 18 mm, 3-strand 600588 187316
Low Profile 8 mm, ISO 4565/ DIN 766 14 mm, 3-strand 187311 600591
10 mm, DIN 766 16 mm, 3-strand 602095 602090
10 mm, ISO 4565 16 mm, 3-strand 472401 187313
12 mm, ISO 4565/ 13 mm, DIN 766 18 mm, 3-strand 474003 187315

*Non-standard configuration optional gypsies can be supplied separately.

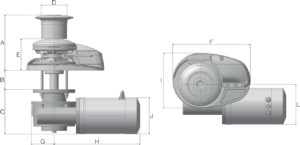

Product Dimensions in (mm)

Model A B C D E* F G H I J L
1500W 195 50-70 155 Ø92 110 270 80 365 192 Ø127 145

*Low Profile height dimensions

Box includes:

*Windlass assembly filled with oil and build in double relay
*Handle or lever
*CD instruction manual
