X3.5- VERTICAL WINDLASS Lofrans’

฿0.00

1700W/  2000W/  2300W/  2700W

The “X” vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

→The standard features that you can meet in every X series windlass are:

→Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.

→The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.

→The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.

→There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.

→Manual override so that the chain or rope can be recovered manually in case of electric function failure.

Main Features

—Luxury 316 L stainless steel base and drum

—With drum or Low profile

—Indepent Gypsy and drum operation

—Manual chain release

—Chain counter magnet pre-installed as standard

—Anodised marine aluminium gearbox

—Heavy duty electric motor

—Control box included in package



Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,

X3.5 Vertical Windlass 1700W/  2000W/  2300W/  2700W

Product Description

Construction 316 L Stainless Steel
Motor Size 1700W 2300 W 2700W
Power Supply (V) 12 24 24 24
Maximum Pull (Kg) 1700 1700 1900 2000
Working Load (Kg) 270 270 330 400
Amps at Working Load (A) 185 95 180 210
Line Speed at Working Load (m/min) 15 16 16 16
Max Line Speed (m/min) 37 37 35 35
Net Weight Low Profile (Kg) 50 50 60 60
Net Weight with Drum (Kg) 48 48 58 58
Circuit Breaker (available separately) 187334 187332 187333 187333
Control Box Included in package

Product Code

X3.5 Code Code Code Code

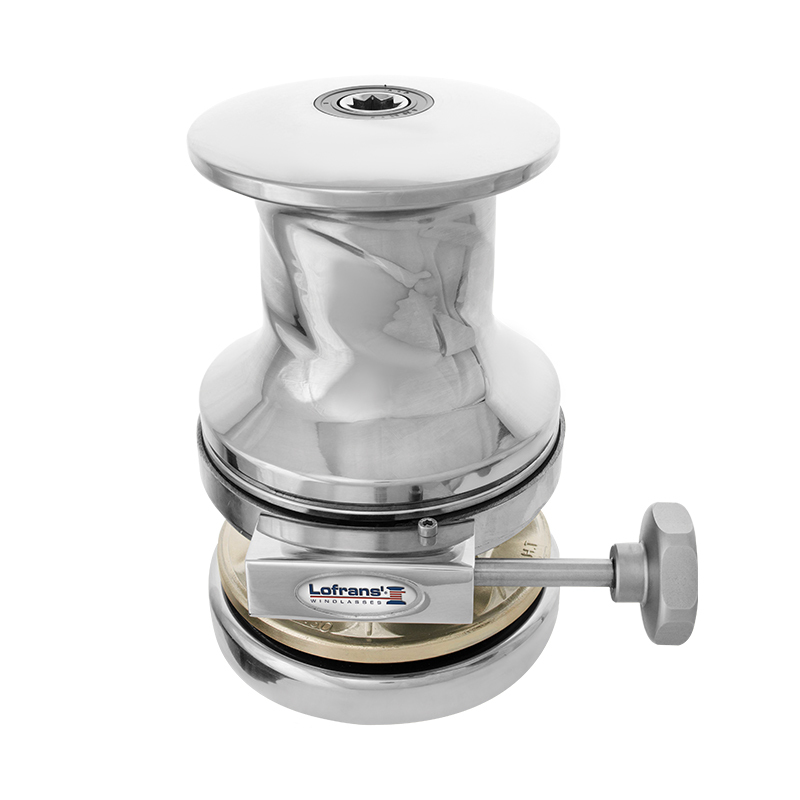

With Drum 10mm, ISO4565 600084 600085 * *
12mm, ISO4565/ 13mm, DIN766 600086 600087 600088 *
14mm * * * 600090

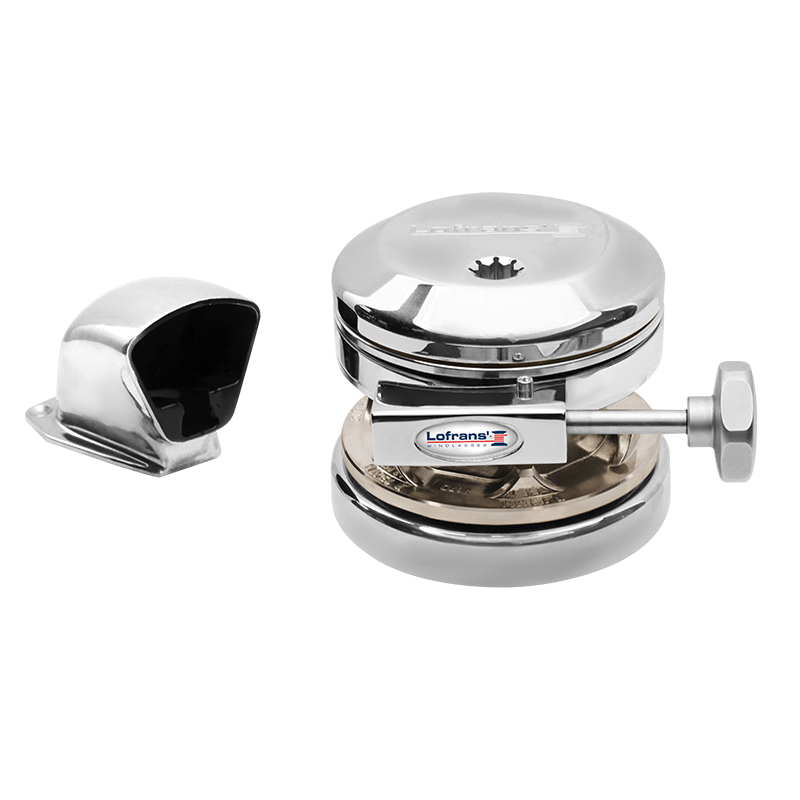

Low Profile 12mm, IS04565/ 13mm,DIN766 635984 635985 635986 *

*Non-standard configuration optional gypsies can be supplied separately.



Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
