The range of horizontal anchor windlasses are suitable for boats from 18 up to 150 feet offering the best performance and functionality, when there is adequate deck space or if the chain locker has limited size or accessibility.They are simple to use, reliable, with their classic and timeless style making them perfect for many vessels, especially for the charter business.

Material and finish, marine grade aluminium alloy: Our horizontal anchor windlasses are produced by using marine glade aluminium alloy. The body is polished and anodised. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodised aluminium. Some models are available with a painted white polyester coating.

Main Features

—Marine aluminium anodised body

—Indepent Gypsy and drum operation

—Manual chain release

—Manual override


Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

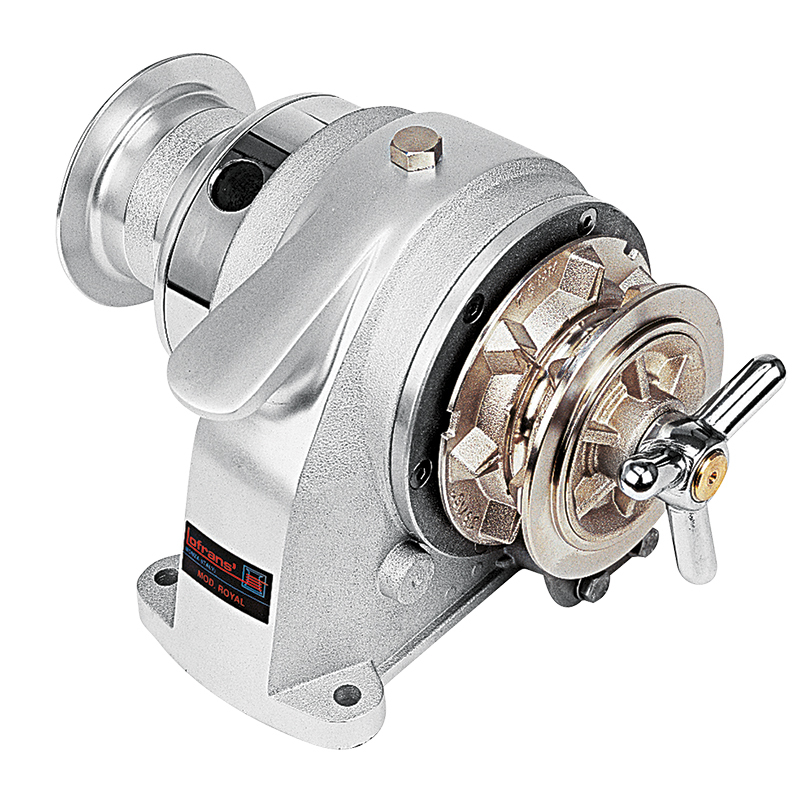

Manual Royal- Horizontal Windlass

Product Description

Construction Anodised Aluminium
Motor Size MANUAL
Power Supply (V)
Maximum Pull (kg) 400
Working load (kg) 70
Amps at Working Load (A)
Line Speed at Working Load (m/min)
Max Line Speed (m/min)
Net Weight with drum (kg) 10

Product Code

With Drum 6 mm, ISO 4565/ DIN 766 187323
7 mm, ISO 4565 600625
8 mm, ISO 4565/ DIN 766 404725
10 mm, DIN 766 600079
10 mm, ISO 4565 220002

*Non-standard configuration optional gypsies can be supplied separately.

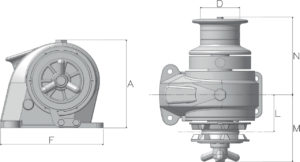

Product Dimensions (mm)

Model A D F L M N
Manual 192 Ø85 222 80 145 167

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
