Description

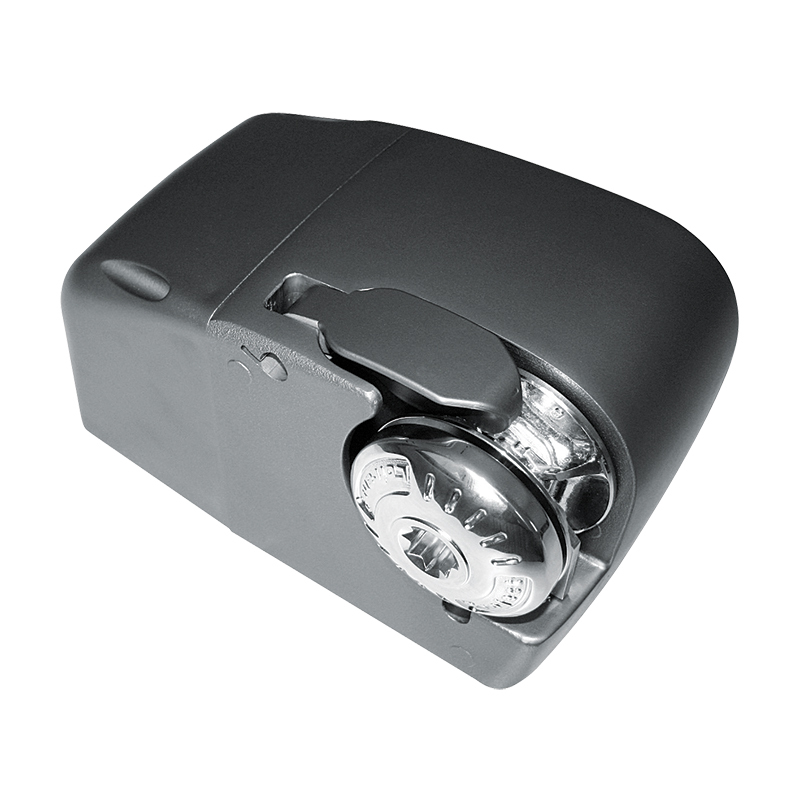

Atlas- Horizontal Windlass Lofrans’
ATLAS | Code | ||
Low Profile | 6 mm, ISO 4565 | 10-12 mm, 3-strand | 600023 |
7 mm, ISO 4565 | 12 mm, 3-strand | 600024 | |
8 mm, ISO 4565/ DIN 766 | 12 mm, 3 strand | 600025 |
*Non-standard configuration optional gypsies can be supplied separately. Please refer to compatible gypsies table.

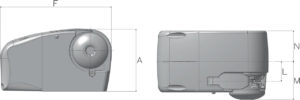

Product Dimensions (mm)
Model | A | F | L | M | N |
---|---|---|---|---|---|
600W | 153 | 272 | 50 | 93 | 75 |
Product Description
Box includes:
*Windlass assembly filled with oil and build in double relay
*Handle or lever
*CD instruction manual
