Description

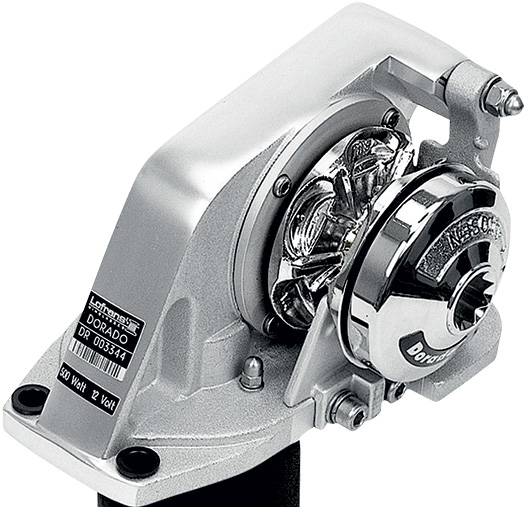

Dorado-Horizontal Windlass 500W/ 700W
Product Description
| Construction | Anodised Aluminium | |
| Motor Size | 500 W | 700 W |
| Power Supply (V) | 12 | 12 |
| Maximum Pull (kg) | 600 | 650 |
| Working Load (kg) | 70 | 80 |
| Amps at Working Load (A) | 65 | 80 |
| Line Speed at Working Load (m/min) | 18 | 20 |
| Max Line Speed (m/min) | 24 | 25 |
| Net Weight Low Profile (kg) | 10 | 11 |
| Circuit Breaker (available separately) | 187331 | 187332 |
| Control Box | Included in package | |
Product Code:
| DORADO | Type | Code | Code | ||
| Low
Profile |
6 mm, ISO 4565 | 10-12 mm, 3-strand | Port | 409568 | 600048 |
| 8 mm, ISO 4565/DIN 766 | 12 mm, 3-strand | Port | * | 409569 | |
*Non-standard configuration optional gypsies can be supplied separately. Please refer to compatible gypsies table.

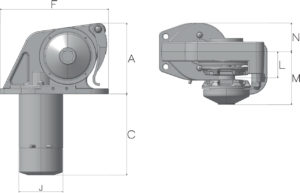

Product Dimensions (mm)
| Model | A | C | F | J | L | M | N |
|---|---|---|---|---|---|---|---|
| 500W | 130 | 150 | 200 | Ø82 | 48 | 98 | 53 |
| 700W | 130 | 150 | 200 | Ø94 | 48 | 98 | 53 |
Box includes:
*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
