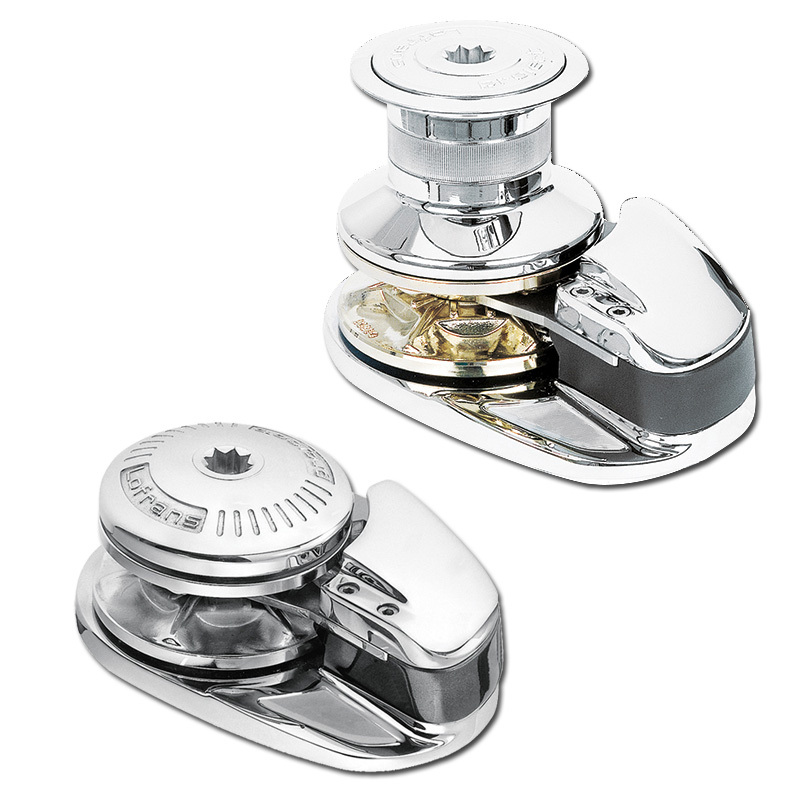

PROJECT 1000- VERTICAL WINDLASS Lofrans’

฿0.00

1000W

The “Project” windlasses can be installed in sail and motor boats from 6m to 27m in length. These windlasses are considered to be an elite product line as they are developed to provide high performance, easy installation and maintenance. Another feature that is a milestone for Lofrans’ is the internationally pattended motor which includes two solenoids. Also they feature a sensor and a magnet for an easy connection to the chain counter.

The motors of the Project windlasses are designed specifically to provide high torgue in every anchoring situation and their anchoring power can reach 45m / min. In case of function failure of the solenoids, there is the ability to bypass the solenoid with a connection to the terminal “E” and lift up the anchor.

All motors have IP66 rate, their body has double zincates and they are painted with a polyester coating. Also, they are sealed by a sequence of seals in order to prevent water intrusion.

Main Features

—Luxury chromed bronze base and drum

—Special watertight stainless steel ball bearing in the base

—With drum or Low profile

—Indepent Gypsy and drum operation

—Rope and chain combination Gypsy

—Manual chain release

—Manual override

—Rope chain management by the spring loaded arm

—Chain counter magnet pre-installed as standard

—Heavy duty two speed built in solenoids IP67 rated electric motor

—Anodised marine aluminium gearbox

—Control Box build in

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,

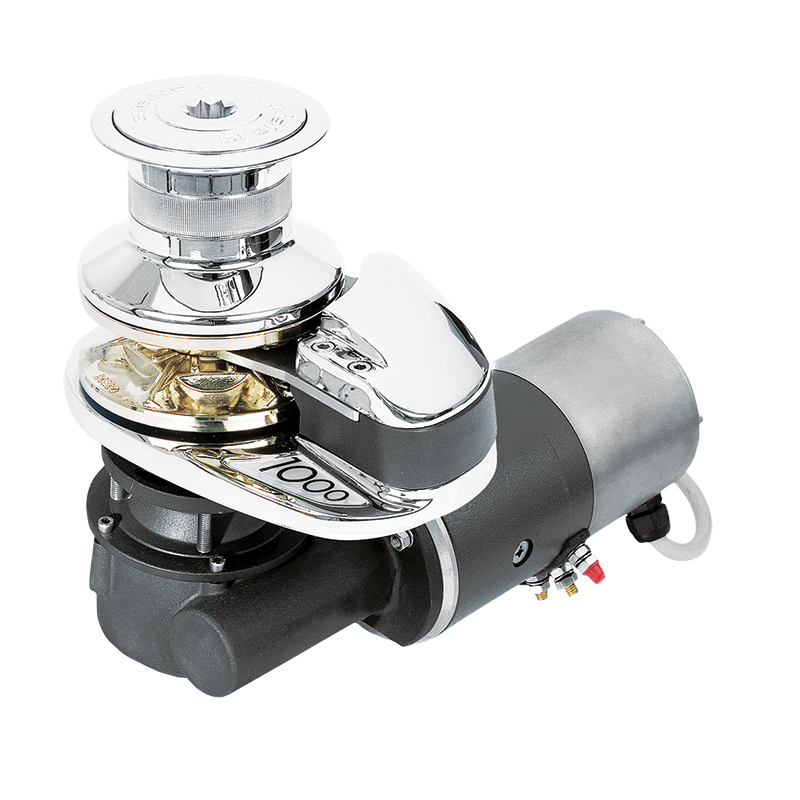

Project 1000W- Vertical Windlass

Product Description

Contruction Chromed bronze
Motor Size 1000 W
Power Supply (V) 12 24
Maximum Pull (kg) 1000 1060
Working load (kg) 165 165
Amps at Working Load (A) 135 70
Line Speed at Working Load (m/min) 22 25
Max Line Speed (m/min) 50 50
Net Weight Low Profile (kg) 22 22
Net Weight with drum (kg) 24 24
Circuit Breaker (available separately) 187333 187332
Control Box Build in

Product Code

PROJECT 1000 Code Code
With Drum 8 mm, ISO 4565/ DIN 766 14 mm, 3- strand 220159 478645
10 mm, DIN 766 602092 471023
10 mm, ISO 4565 428419 *
Low Profile 8 mm, ISO 4565/ DIN 766 14 mm, 3-strand 220153 *
10 mm, DIN 766 602093 473280
10 mm, ISO 4565 471022 *

*Non-standard configuration optional gypsies can be supplied separately.

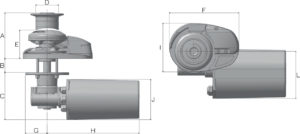

Product Dimensions

Model A B C D E* F G H I J L
1000W 153 25-40 155 Ø76 95 232 73 306 162 134 165

*Low Profile height dimensions

Box includes:

*Windlass assembly filled with oil and build in double relay
*Handle or lever
*CD instruction manual
