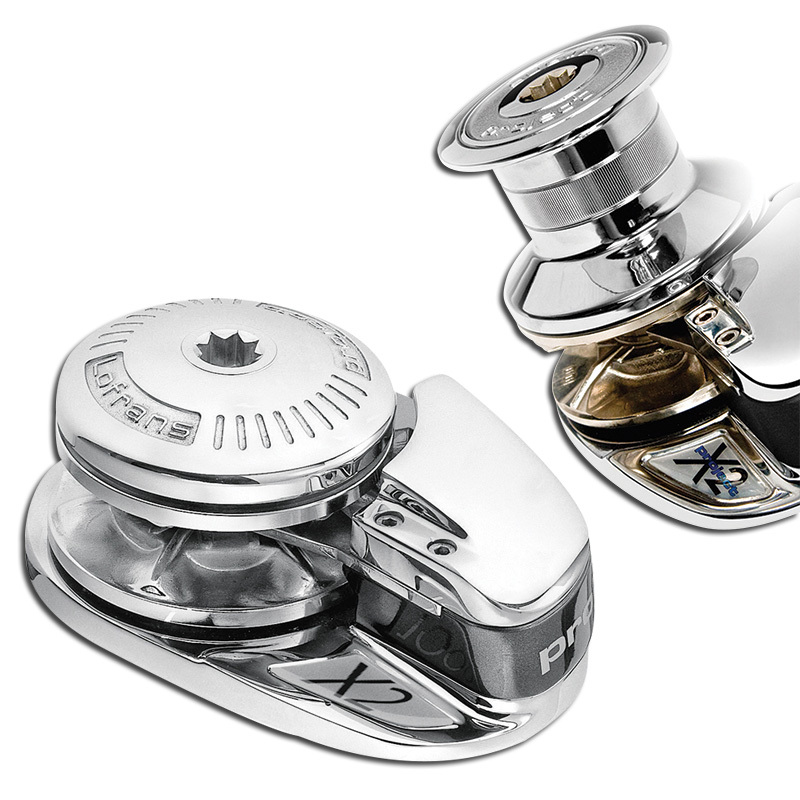

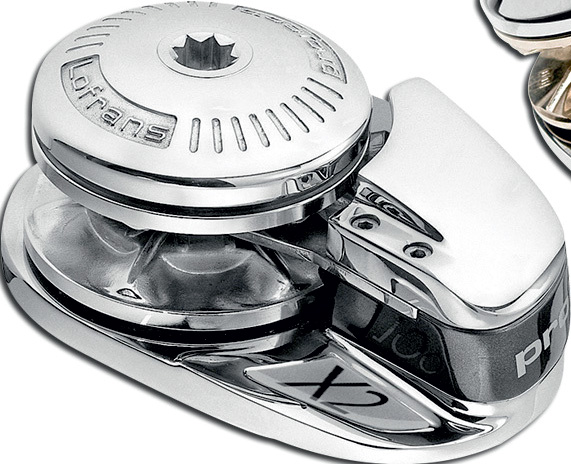

X2-Vertical Windlass 700W/ 1000W/ 1500W
Product Description
Construction | Aluminium | |||||
Motor Size | 700W | 1000W | 1500W | |||
Power Supply (V) | 12 | 24 | 12 | 24 | 12 | 24 |
Maximum Pull (Kg) | 750 | 750 | 1000 | 1060 | 1200 | 1250 |
Working Load (Kg) | 80 | 80 | 165 | 165 | 190 | 190 |
Amps at Working Load (A) | 90 | 45 | 135 | 70 | 150 | 75 |
Line Speed at Working Load (m/min) | 26 | 26 | 20 | 23 | 17 | 19 |
Max Line Speed (m/min) | 35 | 35 | 40 | 40 | 40 | 40 |
Net Weight Low Profile (Kg) | 18 | 18 | 19 | 23 | 24 | 24 |
Net Weight with Drum (Kg) | 19 | 19 | 20 | 24 | 25 | 25 |
Circuit Breaker (available separately) | 187332 | 187331 | 187333 | 187332 | 187333 | 187332 |
Control Box | Included in package |
Construction | Chromed Bronze | |||||
Motor Size | 700W | 1000W | 1500W | |||
Power Supply (V) | 12 | 24 | 12 | 24 | 12 | 24 |
Maximum Pull (Kg) | 850 | 850 | 1000 | 1060 | 1200 | 1250 |
Working Load (Kg) | 80 | 80 | 165 | 165 | 190 | 190 |
Amps at Working Load (A) | 90 | 45 | 135 | 70 | 150 | 75 |
Line Speed at Working Load (m/min) | 26 | 26 | 20 | 23 | 17 | 19 |
Max Line Speed (m/min) | 35 | 35 | 40 | 40 | 40 | 40 |
Net Weight Low Profile (Kg) | 21 | 21 | 23 | 23 | 24 | 24 |
Net Weight with Drum (Kg) | 23 | 23 | 24 | 24 | 25 | 25 |
Circuit Breaker (available separately) | 187332 | 187331 | 187333 | 187332 | 187333 | 187332 |
Control Box | Included in package |
Product Code
X2 | Code | Code | Code | Code | Code | Code | ||
With Drum | 6mm, ISO 4565/DIN766 | – | 600044 | * | 600049 | * | * | * |
8mm, ISO4565/DIN766 | 14mm, 3-strand | 472735 | * | 472751 | 472750 | 600057 | 600061 | |
10mm, DIN766 | – | * | * | * | * | * | 601068 | |
10mm, ISO4565 | – | * | * | 600053 | * | 600056 | 600060 | |
Low Profile | 6mm, ISO4565/DIN766 | – | 600045 | 602111 | 600050 | * | * | * |
8mm, ISO4565/DIN766 | 14mm, 3-strand | 472558 | * | 472557 | * | * | 601065 | |
10mm, DIN766 | – | * | * | * | * | 601055 | 601067 | |
10mm, ISO4565 | – | * | * | 57450 | * | 601054 | 601066 |
X2 | Code | Code | Code | Code | Code | Code | ||
With Drum | 6mm, ISO 4565/DIN766 | – | 60046 | 601022 | 600997 | * | * | * |
8mm, ISO4565/DIN766 | 14mm, 3-strand | 472862 | 601024 | 473212 | 473255 | * | * | |
10mm, DIN766 | – | * | * | 602096 | 473227 | 187274 | 187276 | |
10mm, ISO4565 | – | * | * | 472863 | * | 601013 | 601044 | |
Low Profile | 6mm, ISO4565/DIN766 | – | 600047 | 601016 | 600989 | * | * | * |
8mm, ISO4565/DIN766 | 14mm, 3-strand | 472861 | 601018 | 473213 | 600054 | * | * | |
10mm, DIN766 | – | * | * | 602097 | 473226 | 187273 | 601041 | |
10mm, ISO4565 | – | * | * | 472864 | 478642 | 601008 | 602529 |
*Non-standard configuration optional gypsies can be supplied separately.

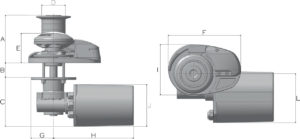

Product Dimensions
Model | A | B | C | D | E* | F | G | H | I | J | L |
---|---|---|---|---|---|---|---|---|---|---|---|
700W | 153 | 25-40 | 155 | Ø76 | 95 | 232 | 73 | 260 | 162 | 134 | 165 |
1000W | 153 | 25-40 | 155 | Ø76 | 95 | 232 | 73 | 260 | 162 | 134 | 165 |
1500W | 153 | 25-40 | 155 | Ø76 | 95 | 232 | 73 | 260 | 162 | 134 | 165 |
*Low Profile height dimensions
Box includes
*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
