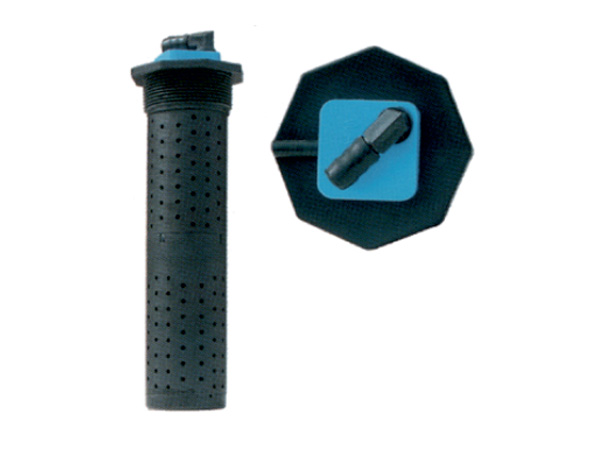

SHF-01 Sewage/Waste Water

Sensotex SHF series liquid level sensors are compatible with waste water, fuel, diesel, bio-fuel, and many other fluids. The main feature of SHF liquid level sensor is the outside tube which is used to filter the impurities. It is often used as sewage liquid level sensor. Further application is controlling sewage water level. As each sensor is manufactured to the required length there is no need for any mechanical adjustment by the customer.

Features & Options

*Outside tube for filtering impurities in the waste/sewage water

*Analogue output with reed switch technology

*Various kinds of materials for every type of liquid application

*1-1/4” BSP thread or 6 holes fitment options

*Customizable resistance range (Ohm value) for liquid level at empty from full

*Sensors have optional connector output with flying leads or your desired pin side connector

*Optional low level alarm to remind the driver of filling fuel up when the fuel level down to the empty

*Can be integrated with GPS tracking and monitoring system (added value)

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

SHF-01 Sewage/Waste Water

Code 18-00015
Application Sewage/Waste Water
Material ABS
Resistance Range Customization
Assembly Way 2-NPT thread
Accessories  Rubber O Ring
Available Size 113-217/321/425mm
