The range of horizontal anchor windlasses are suitable for boats from 18 up to 150 feet offering the best performance and functionality, when there is adequate deck space or if the chain locker has limited size or accessibility.They are simple to use, reliable, with their classic and timeless style making them perfect for many vessels, especially for the charter business.

Material and finish, marine grade aluminium alloy: Our horizontal anchor windlasses are produced by using marine glade aluminium alloy. The body is polished and anodised. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodised aluminium. Some models are available with a painted white polyester coating.

Main Features

—Marine aluminium anodised body

—Indepent Gyspy and drum operation

—Manual chain release

—Manual override

—Heavy duty rated IP66 electric motor

—Automatic free fall available as option

—Control Box included in package

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

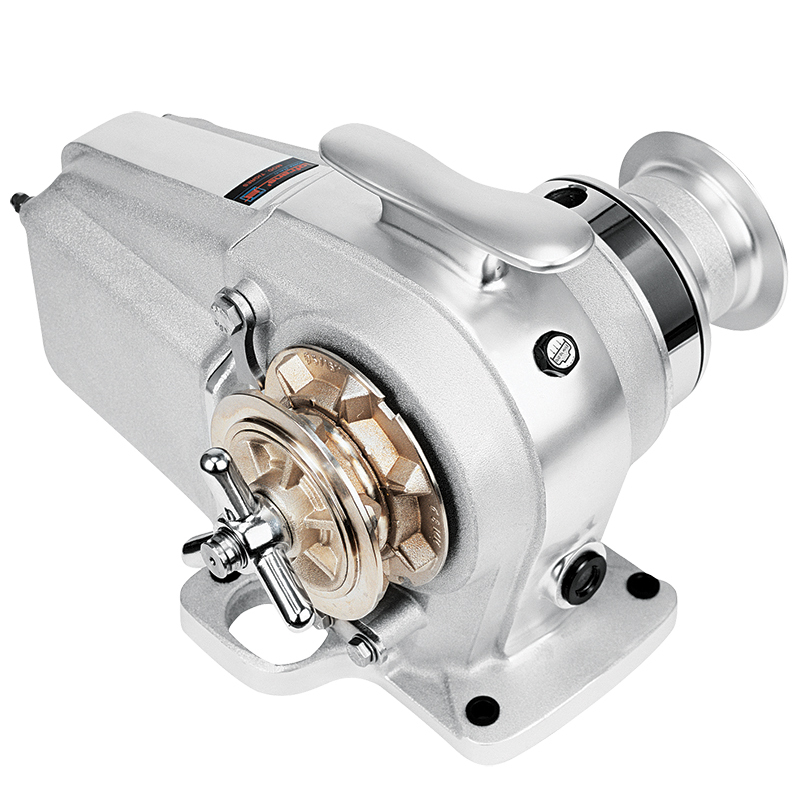

1500W Tigres-Horizontal Windlass

Product Description

Construction Anodised Aluminium
Motor Size 1500W
Power Supply (V) 12 24
Maximum Pull (Kg) 1350 1400
Working Load (Kg) 195 195
Amps at Working Load (A) 160 90
Line Speed at Working Load (m/min) 14 16
Max Line Speed (m/min) 33 33
Net Weight with Drum (Kg) 28 28
Circuit Breaker (available separately) 187333 187332
Control Box Included in package

Product Code

TIGRES Code Code
With Drum 8 mm, ISO 4565/DIN 766 418407 418409
10 mm, DIN 766 600055 600059
10 mm, ISO 4565 470060 220290

*Non-standard configuration optional gypsies can be supplied separately.

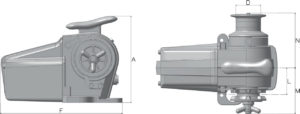

Product Dimensions (mm)

Model A D F L M N
1500W 290 Ø85 415 90 155 185

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
