3500W/   4000W/   Hydraulic

Available: (Type A)  (Type B)  (Type C)

The range of horizontal anchor windlasses are suitable for boats from 18 up to 150 feet offering the best performance and functionality, when there is adequate deck space or if the chain locker has limited size or accessibility.They are simple to use, reliable, with their classic and timeless style making them perfect for many vessels, especially for the charter business.

Material and finish, marine grade aluminium alloy: Our horizontal anchor windlasses are produced by using marine glade aluminium alloy. The body is polished and anodised. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodised aluminium. Some models are available with a painted white polyester coating.

Main Features

—Available in white polyester coating

—Indepent Gypsy and drum operation

—Manual chain release

—Manual override

—Heavy duty electric motor

—Construction: White Aluminium

—Control Box included in package

Out of stock

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
Categories: ,

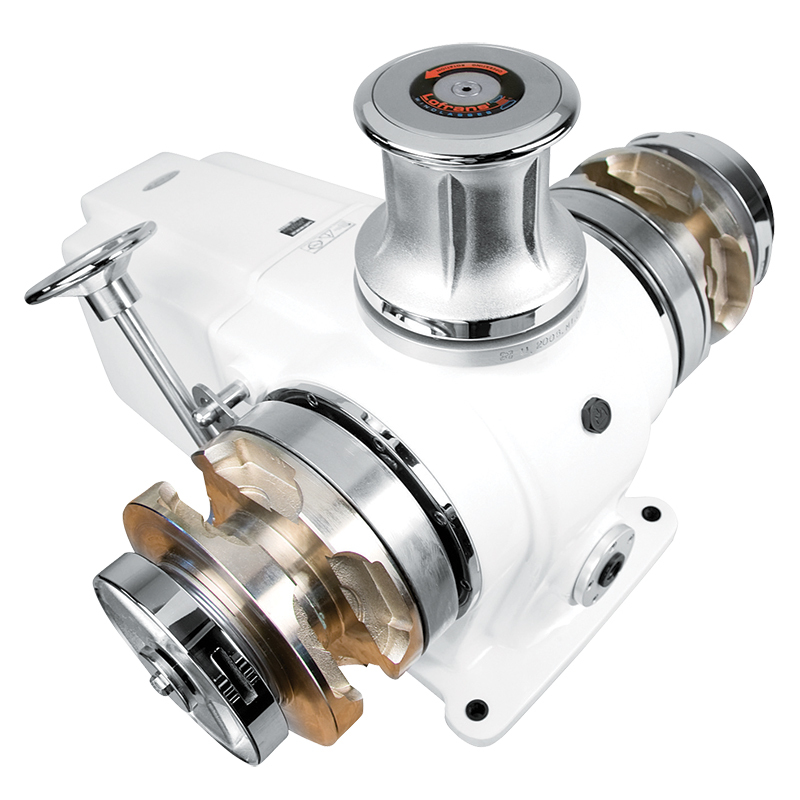

Ercole- Horizontal Windlass 3500W/   4000W/   Hydraulic

Product Description

Construction White Aluminium
Motor Size 3500 W Hydraulic-11cc
Power Supply (V) 24
Maximum Pull (kg) 4500 5000
Working Load (kg) 1000 1200
Amps at Working Load (A) 240
Line Speed at Working Load (m/min) 12 14
Max Line Speed (m/min) 20 14
Net Weight with drum (kg) 200 180
Hydraulic Pressure (bar) 200
Hydraulic Flow (lt/min) 40
Control Box Included in package

Product Code:

ERCOLE Model Code Code
With Drum 14 mm Type A 403615 602509
Type B 220317 602512
Type C 403614 602515

*Non-standard configuration optional gypsies can be supplied separately. Please refer to compatible gypsies table.

Product Dimensions (mm)

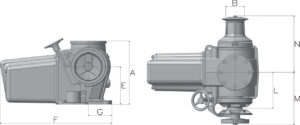

Type A

Model A B E F G L M N
3500W 390 Ø150 230 705 160 230-250 390 340
Hydraulic 390 Ø150 230 705 160 230-250 390 340

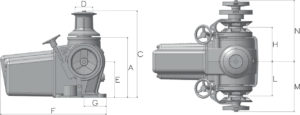

Type B- White Aluminium

Model A C D E F G H L M N
3500W 390 555 Ø125 230 705 160 230-250 230-250 390 340
Hydraulic 390 555 Ø125 230 705 160 230-250 230-250 390 340

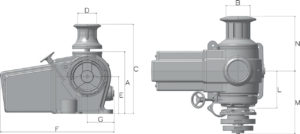

Type C

Model A B C D E F G L M N
2300W 390 Ø150 555 Ø125 230 705 170 230-250 390 339
Hydraulic 390 Ø150 555 Ø125 230 705 170 230-250 390 339

Box includes:

*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
