WAVE DESIGN SWITCH PANEL WITH VOLTAGE METER (SP1233P)

0.00฿

Out of stock

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
Categories: ,

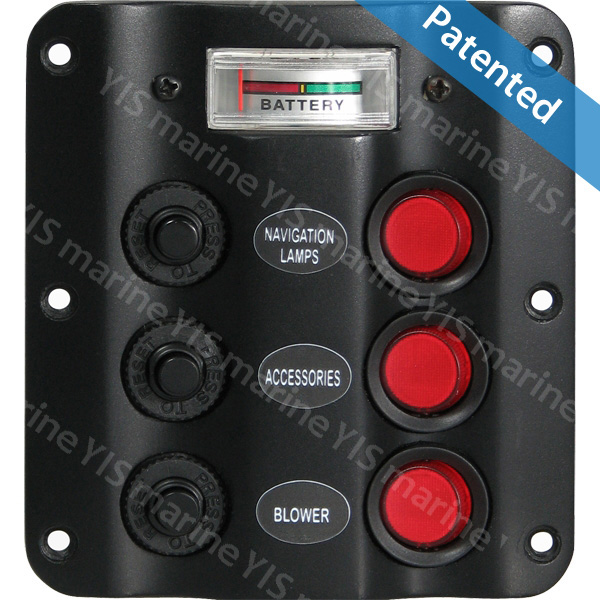

3P Wave Design LED Switch Panel with Voltage Meter

*SP1233P-3P Wave Design LED Switch Panel with Voltage Meter
*Anti-splash model available (SP1233PW)
*LED Switch Panels with PATENTED wave design.
Economical indoor power distribution panel with LED switches and push-reset circuit breakers. The unique, patented wave faceplate design offers both style and functionality. Introduced in 2008, these panels have been the most popular switch panel series of YIH SEAN.

Features

  • 12V DC illuminated (LED) rocker switches
  • Pre-wired with resettable circuit breakers
  • Ultra shallow mounting depth (~45mm)
  • Voltage Meter for battery status check
  • 28 assorted label stickers included

Specification

  • Faceplate | Wave shaped plastic (ABS)
  • Circuit Protection | Circuit breakers
  • Switch Ratings | 10A @ DC 12V
  • Panel Rating | Max Cumulative Amp: 35A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
  • Product Dimensions (W x H) | 100 x 110mm
  • Mounting Depth | 45mm
  • Panel Cut-out (W x L) | 77 x 101.5mm

Certification
