4P Wave Design LED Switch Panel with Circuit Breakers

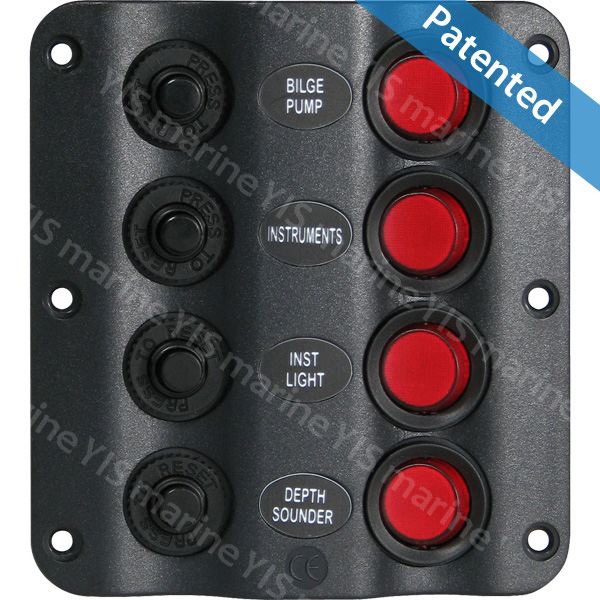

*SP1214P-4P Wave Design Switch Panel
*Anti-splash model available (SP1214PW)
*LED Switch Panels with PATENTED wave design.
Economical indoor power distribution panel with LED switches and push-reset circuit breakers. The unique, patented wave faceplate design offers both style and functionality. Introduced in 2008, these panels have been the most popular switch panel series of YIH SEAN.
- 12V DC illuminated (LED) rocker switches
- Pre-wired with resettable circuit breakers
- Ultra shallow mounting depth (~45mm)
- 28 assorted label stickers included
- Faceplate | Wave shaped plastic (ABS)
- Circuit Protection | Circuit breakers
- Switch Ratings | 10A @ DC 12V
- Panel Rating | Max Cumulative Amp: 35A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
- Product Dimensions (W x H) | 100 x 110mm
- Mounting Depth | 45mm
- Panel Cut-out (W x L) | 77 x 97.5mm
