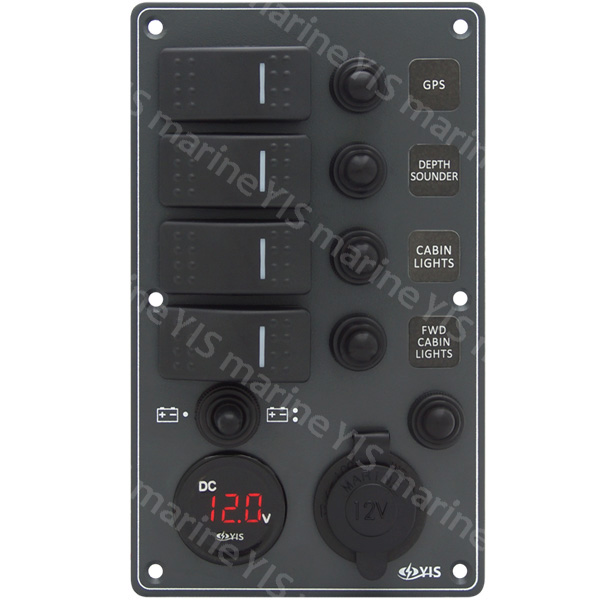

ALUMINUM SWITCH PANEL WITH BATTERY GAUGE & CIG. LIGHTER SOCKET (SP3254P)

฿0.00

*SP3254P-Water-resistant Switch Panel with Battery Gauge Socket and Cig. Lighter (Dark Gray)
*YIS exclusive backlight modules
*IP66 rated
Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels in the market with backlight modules for labels.
Features

*New modern and compact panel design (15% smaller than SP30xx series)

*Backlight modules for labels, allowing easy operation in darkness

*IP66–protect against strong water jets

*Push-reset circuit breakers with rubber boots

*Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)

*Watertight mounting gasket included

*Square shaped label stickers (30pcs) allow vertical or horizontal installation

*1 Battery Gauge (Voltage Meter) & 1 Cig. Lighter Socket

Specification

*Faceplate | 0.1″(2.54mm) Coated Aluminum Alloy

*Circuit Protection | Circuit Breakers

*Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)

*Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)

8Product Dimensions (W x H) | 114 x 191mm

*Mounting Depth | 75mm

*Panel Cut-out (W x L) | 96 x 166mm

Certification
