STREAMLINE WATER-RESISTANT SWITCH PANEL (SP3116P-6P)

0.00฿

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

6P Streamline Water-resistant LED Switch Panel with Circuit Breakers

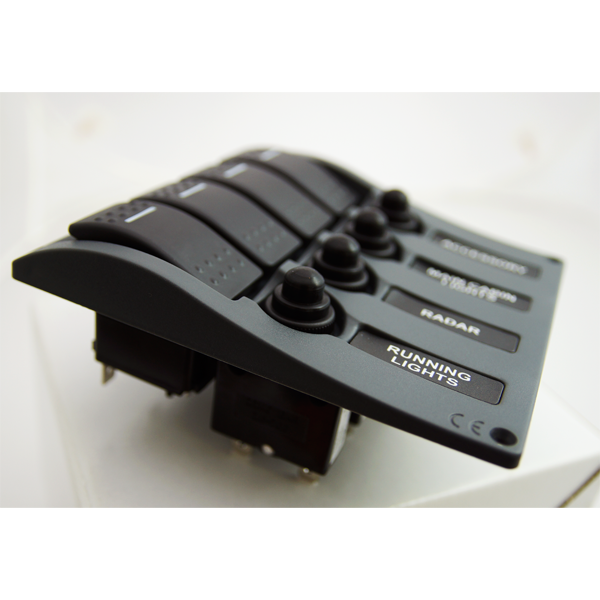

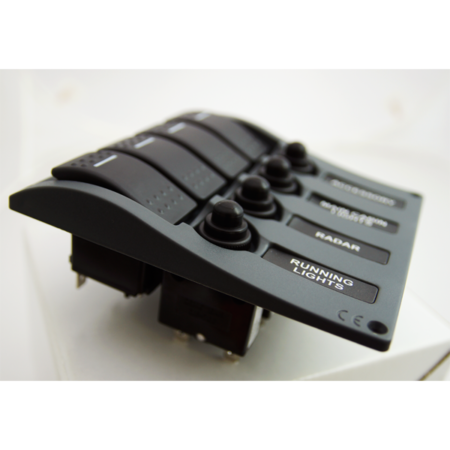

SP3116P-6P Streamline Water-resistant LED Switch Panel with Circuit Breakers
Streamline faceplate design
Come with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. The contemporary streamline faceplate design offers style for boat owners who do not want to settle for the ordinary metal faceplate designs.

Features

  • Unique streamline faceplate design
  • IP66– protect against water jets from all directions (when mounted)
  • Push-reset circuit breakers with rubber boots
  • Illuminated (LED) C-7rocker switches with dual voltage rating (12V / 24V)
  • Watertight mounting gasket included
  • 30 pcs assorted label set included

Specification

  • Faceplate | Streamline shaped plastic (ABS)
  • Circuit Protection | Circuit Breakers
  • Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
  • Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
  • Product Dimensions (W x H) | 133 x 173mm
  • Mounting Depth | 75mm
  • Panel Cut-out (W x L) | 97 x 153mm

Certification
