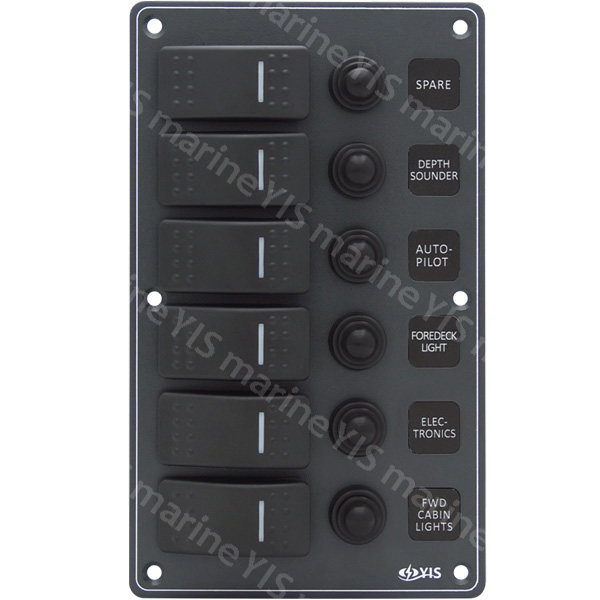

6P Water-resistant Switch Panel with Backlight Modules (Dark Gray)

*SP3216P-6P Water-resistant Switch Panel with Backlight Modules (Dark Gray)
*YIS exclusive backlight modules
*IP66 rated
Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels in the market with backlight modules for labels.


  • New modern and compact panel design (15% smaller than SP30xx series)
  • Backlight modules for labels, allowing easy operation in darkness
  • IP66–protect against strong water jets
  • Push-reset circuit breakers with rubber boots
  • Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
  • Watertight mounting gasket included
  • Square shaped label stickers (30pcs) allow vertical or horizontal installation


  • Faceplate | 0.1″(2.54mm) Coated Aluminum Alloy
  • Circuit Protection | Circuit Breakers
  • Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
  • Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
  • Product Dimensions (W x H) | 114 x 191mm
  • Mounting Depth | 75mm
  • Panel Cut-out (W x L) | 96 x 166mm


SP3216P C-7 Aluminum Water-resistant Switch Panel
