MARINE SWITCHES (C-7231-H1W)
0.00฿
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE

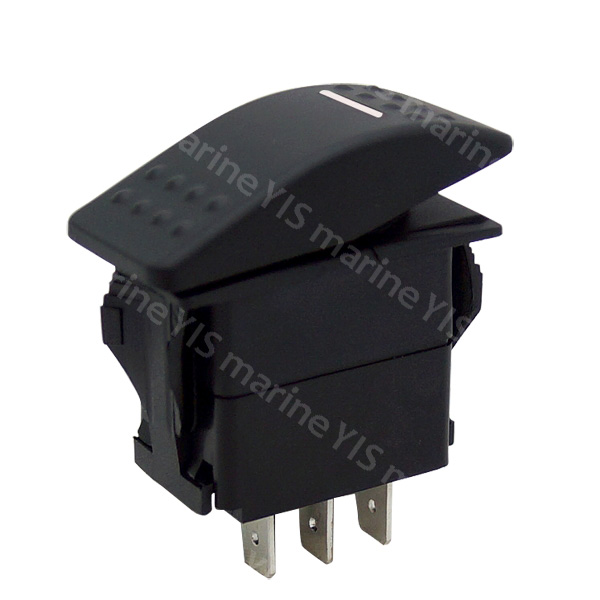

IP67 Water-resistant Sealed Rocker Switch
Water-proof switches specially designed for marine or outdoor applications
As an upgraded version of the C-6 switches, the C-7 switches withstand more severe environment and are IP67 rated. C-7 switches are also equipped more durable and power efficient LED lamps and with dual voltage rating (DC 12V/24V). Furthermore, the C-7 switches come with a complete set of accessories including inter-changable actuators, replacing tool, mounting panels and label stickers.
Features
- Sealed rocker switch to withstand severe outdoor environments
- Interchangeable actuators with various options
- Available in various switch function, illuminating and otherconfigurations
- LED illuminated (DC12V/ 24V dual voltage)
- PC Terminals (0.250” Quick Connect Terminals)
- IP67: Water proof even under temporary water immersion
- Customized switches (rating, LED colors, actuator color…etc.) possible
IP67 Water proof even under temporary water immersion
Specification
- Rating (AC) | 125V 16A / 250V 10A
- Rating (DC) | 12V 20A / 24V 10A
- Contact R. | 50mΩ Max.
- Insulation R. | DC 500V 100MΩ Min.
- Dielectric Strength | AC 1500V 1minute
- Electrical Life | 20,000~50,000 switch function dependent
Product Coding
| Product ID | Type | Switch Function |
|---|---|---|
| C-7124 | SPST | (ON)-OFF |
| C-7137 | SPDT | (ON)-OFF-(ON) |
| C-7144 | DPST | (ON)-OFF |
| C-7167 | DPDT | (ON)-OFF-(ON) |
| C-7231R | SPST | ON-OFF |
| C-7251R | DPST | ON-OFF |
| C-7243RR | SPDT | ON-OFF-ON |
| C-7273RR | DPDT | ON-OFF-ON |
| C-7246R | SPDT | (ON)-OFF-ON |
| C-7276R) | DPDT | (ON)-OFF-ON |
| C-7272RR | DPDT | ON-ON |
(ON): Momentary
