Description

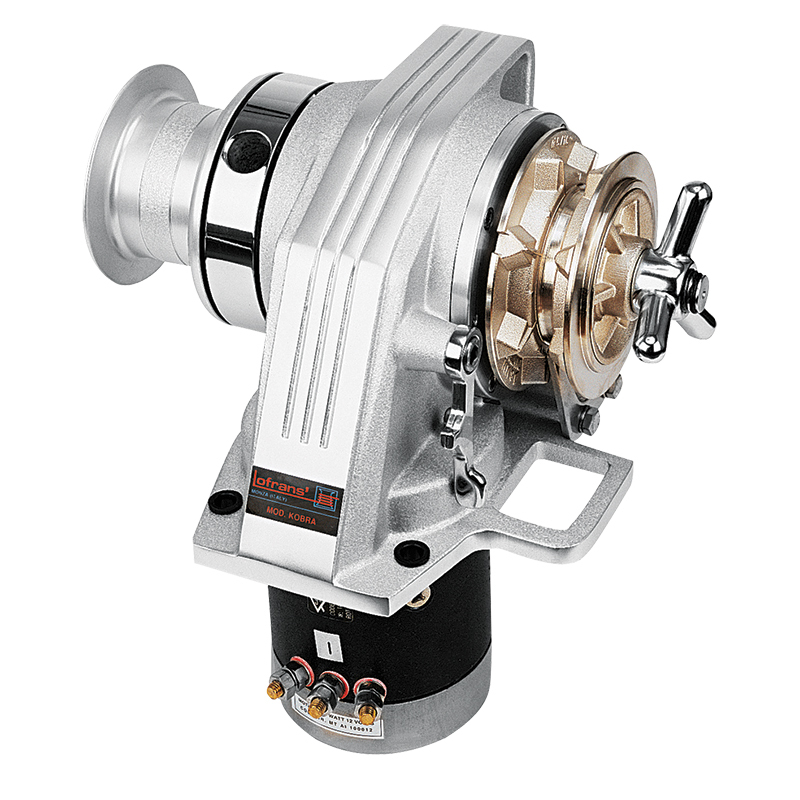

Kobra- Horizontal Windlass 1000W
Product Description
Contruction | Anodised Aluminium | |
Motor Size | 1000W | |
Power Supply (V) | 12 | 24 |
Maximum Pull (kg) | 1250 | 1325 |
Working load (kg) | 170 | 170 |
Amps at Working Load (A) | 150 | 80 |
Line Speed at Working Load (m/min) | 16 | 17 |
Max Line Speed (m/min) | 32 | 33 |
Net Weight with Drum (kg) | 21 | 21 |
Circuit Breaker (available separately) | 187333 | 187332 |
Control Box | Included in package |
Product Code
KOBRA | Code | Code | |
With Drum | 6 mm, ISO 4565/ DIN 766 | 600051 | 600513 |
8 mm, ISO 4565/ DIN 766 | 220260 | 600514 | |
10 mm, DIN 766 | 600052 | 471734 | |
10 mm, ISO 4565 | 428747 | 220420 |
*Non-standard configuration optional gypsies can be supplied separately.

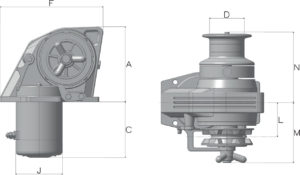

Product Dimensions (mm)
Model | A | C | F | D | J | L | M | N |
---|---|---|---|---|---|---|---|---|
1000W | 184 | 136 | 250 | Ø85 | Ø114 | 83 | 147 | 172 |
Box includes:
*Windlass assembly filled with oil
*Dual direction solenoid pack
*Handle or lever
*CD instruction manual
