CT125-IP IGNITION PROTECTED BOW THRUSTERS

0.00฿

The 24V CT125-IP is the largest Ignition Protected tunnel thruster in the Max Power range with a 185mm diameter tunnel and a thrust rating of 117/257 (kg/lbs). This high performance thruster is suitable for motor boats and deep footed sailing yachts ranging from 35’-58’. Offering all the unique features of the Max Power Ignition Protected tunnel thruster range, this model is ideal where extra thrust power is required.

Ignition protected thrusters  are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part. This feature provides optimal ignition protection because it doesn’t allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.

Out of stock

ใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line id : @gtmmarine

    Categories: ,

    Main Features

    • Ignition Protected to ISO 8846 and water resistant
    • Easy to connect thruster
    • Patented composite drive leg
    • Zero maintenance
    • Case hardened Spiro-conical gears
    • Line shields
    • Purpose but DC motors
    • Electronic control boxes for unrivalled safety features
    • Safe, high power connections
    • Purpose built high specifications DC contractors

    CT125-IP Ignition Protected Bow Thrusters 24V

    Code Voltage Thrust (kg/lbs) Propellers Power (kw/hp) Weight (kg)
    25-00121 24V 115/254 Duo 8.58/11.5 27.2

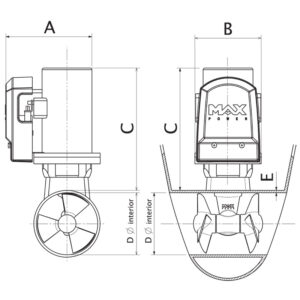

    Product Dimensions in (mm)

    Model A B C D E
    CT125-IP 390 305 490 185 6-7
