ZEFIRO FIXED TANKS

0.00฿

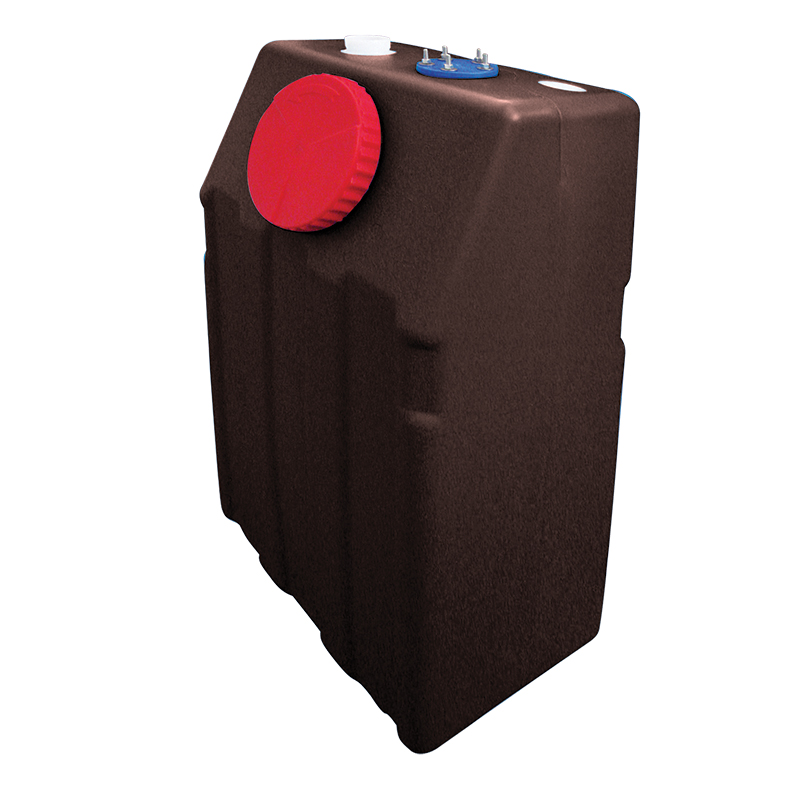

Zefiro Waste Water Tank

Vertical model made from odour-free high-density polyethylene. Gravity discharge: when installation is carried out at more than 0.5 m above the waterline, the tank can be emptied without pump. Can be mounted on a bulkhead.

Features:

—Shaped for an effective discharge

—1inlet and 2 outlets Ø 38 mm- G 1 1/2″

—1 vent Ø 25 mm- G 3/4″

—1inspection hatch: Ø 127 mm

—Plate compatible with VDO standard sensors

—Compatible with diaphragm pumps and maceratos (12 or 24V)

Accessories available : sender, gauge, vented loop, valve, filter, deck filler, etc.

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

Zefiro Waste Water Tank

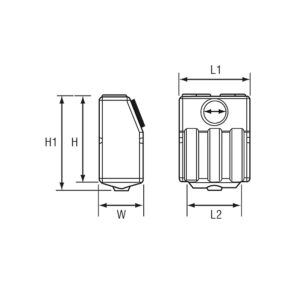

Code Capacity(lt) L1 (mm) L2(mm) W(mm) H(mm) H1(mm) ØA(mm)
22-01207 40 400 302 250 493, 7 540 133,5
22-01208 60 400 302 250 493,7 750,3 133,5
