T1500 CAPSTAN Lofrans’
0.00฿
Main Features
♦Motor IP-rating (12/24V): 66
♦Anodised marine aluminium gearbox
♦Control Box included in package
♦Circuit Breaker (Available Separately)
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE

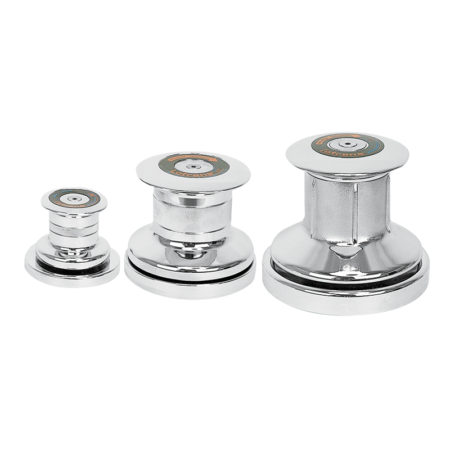

T1500 Capstan Lofrans’
| Construction | Chromed Bronze | Aluminium | ||
| Model | T1500 | |||
| Motor Size | 1500W | |||
| Power Supply (V) | 12 | 24 | 12 | 24 |
| Maximun Pull (kg) | 1200 | 1250 | 1200 | 1250 |
| Working load (kg) | 190 | 190 | 190 | 190 |
| Amps at Working Load (A) | 150 | 75 | 150 | 75 |
| Line Speed at Working Load (m/min) | 17 | 19 | 17 | 19 |
| Max Line Speed (m/min) | 40 | 40 | 40 | 40 |
| Net Weight with Drum (kg) | 27 | 27 | 18 | 18 |
Product Dimensions
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T1500 | 162 | 50-70 | 160 | Ø104 | 73 | 236 | Ø191 | 165 | 157 |
