STREAMLINE WATER-RESISTANT SWITCH PANEL (SP3114P)
0.00฿
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments

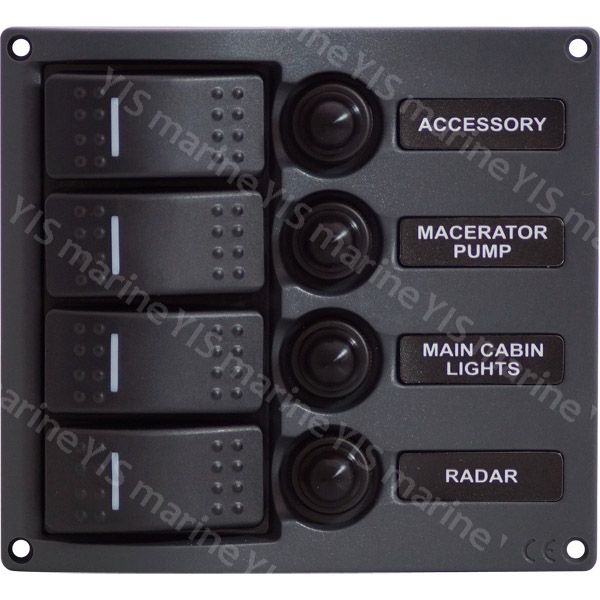

4P Streamline Water-resistant LED Switch Panel with Circuit Breakers
*SP3114P-4P Streamline Water-resistant LED Switch Panel with Circuit Breakers
Streamline faceplate design
Come with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. The contemporary streamline faceplate design offers style for boat owners who do not want to settle for the ordinary metal faceplate designs.
Features
- Unique streamline faceplate design
- IP66– protect against water jets from all directions (when mounted)
- Push-reset circuit breakers with rubber boots
- Illuminated (LED) C-7rocker switches with dual voltage rating (12V / 24V)
- Watertight mounting gasket included
- 30 pcs assorted label set included
Specification
- Faceplate | Streamline shaped plastic (ABS)
- Circuit Protection | Circuit Breakers
- Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
- Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
- Product Dimensions (W x H) | 133 x 121mm
- Mounting Depth | 75mm
- Panel Cut-out (W x L) | 97 x 101mm
