DIGITAL VOLTAGE METER (SP-BG1)

0.00฿

Out of stock

ใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line id : @gtmmarine

    Categories: ,

    Digital Voltage Meter

    *Digital Voltage Meter
    *With wire output
    *With Quick Connector Terminals

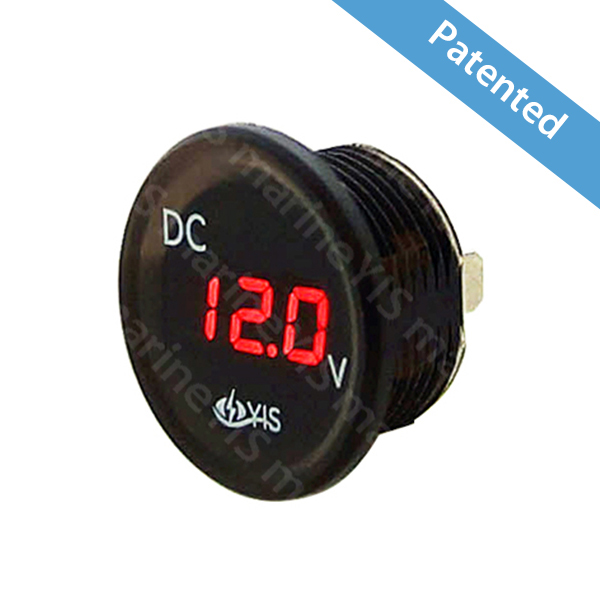

    SP-BG1 is a compact size, self-powered, DC voltage monitor with bright 3 digit LED display. SP-BG1 is housed in a uni-body PolyCarbonate case with no opening in the front and completely sealed in the back, providing excellent protection against moisture, dust and vibration. Output options are wire output (SP-BG1) or .250” quick connector terminals (SP-BG1T).

    Features

    • Compact size
    • Digital LED display (3 digits)
    • Self-powered from the measuring DC voltage
    • Floating decimal point for better resolution below 10V
    • Completely sealed design (IP67)
    • Reversed polarity input protection
    • Optional 0.250” Quick Connector terminals output (SP-BG1T)
    • Suits accessories for AS212 / AS231

    Specification

    • Voltage Range | DC 2.50~30V
    • Current Consumption | <30mA
    • Sampling Rate | 5 readings/s
    • Resolution | 0.01V (input <10V) / 0.1V (input >10V)

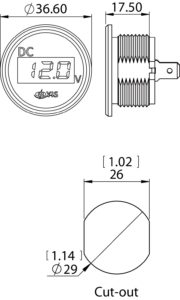

    Product Dimension
