Description

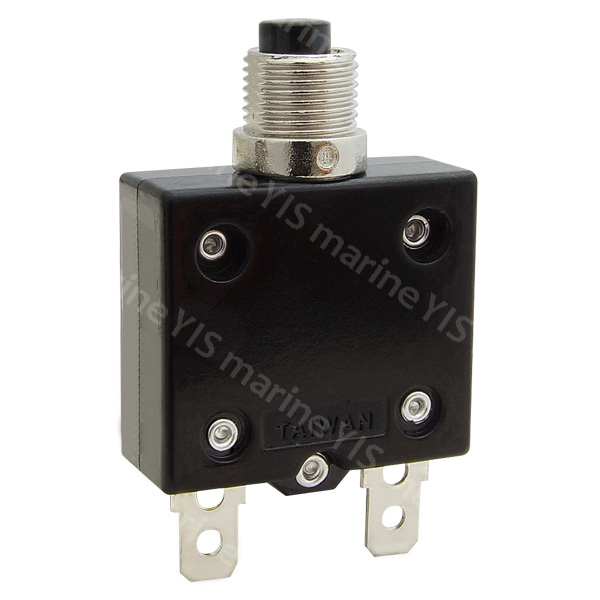

Push-Button Manual Reset Circuit Breaker
Features
- Protecting circuits with currents up to 50A
- Manual push-reset operation
- Bushing: Metal M12 x P 1.0
- Optional waterproof rubber boot available
Specification
- Voltage Rating | DC 50V, AC 125V/250V
- Amps Rating | 3A-50A
- Dielectric Strength | AC 1500V/1 Minute
- Interrupting Capacity | 1000A @125VAC,
- 2000A @250VAC
- Insulation Resistance | > 100 MΩ
Product Coding

Certification

Approval for 3-15A @ 125/250V AC

Approval for 5A, 10A, 15A, 20A @ 125V AC VDE:
