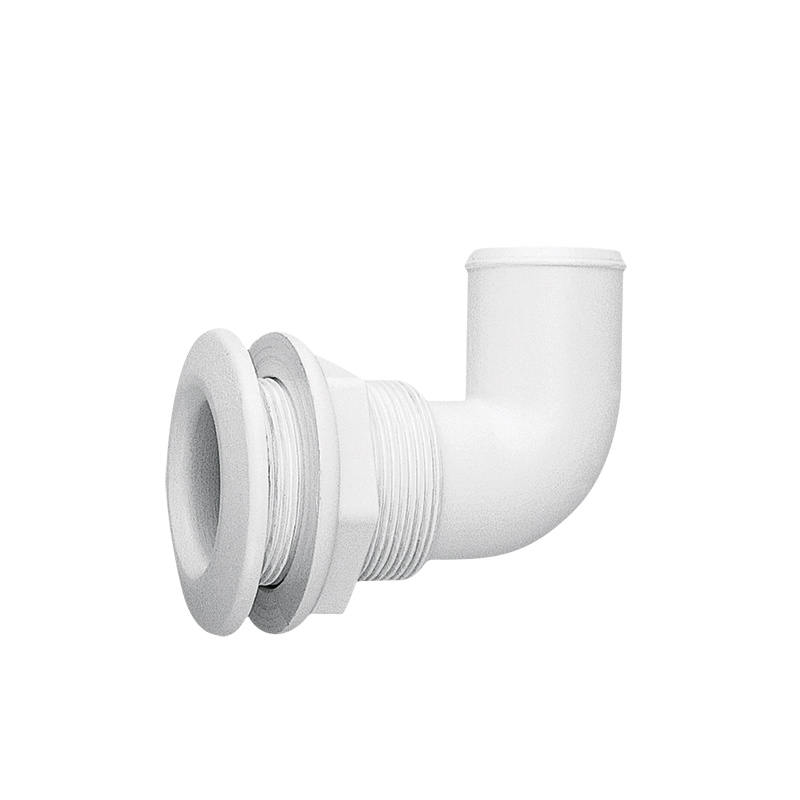

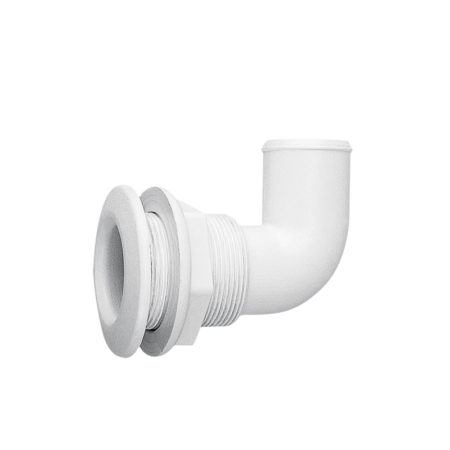

Thru-hulls Elbow 90° fo Hose, PA, White
Elbow thru-hulls are the answer to the most common plumbing issues:
—Allow major room saving, as they can be used with a hose running along the hull
—Avoid making a bend in the hose, which can sometimes be a source of leak or breakage
—Require a simplified installation process inside the hull, carried out by one person only. You can hold it firmly with one hand, while screwing with the other hand
Product Dimensions Availability:
| Code | Ø A (mm) | Ø B (mm) | Ø F (mm) | Ø D ( mm) | E (mm) | C (mm) | Cut-out Ø H independed of hull thickness G (mm) |
| 39548 | 26,3 | 20,8 | 14,7 | 45 | 40 | 84 | Hull thickn. < 20mm Ø 28mm |
| 39549 | 30,3 | 26,2 | 19 | 53 | 40 | 90,5 | Hull thickn. < 20mm Ø 33mm |
| 39550 | 48 | 39 | 31,7 | 70 | 45 | 114 | Hull thickn. < 20mm Ø 50mm |
