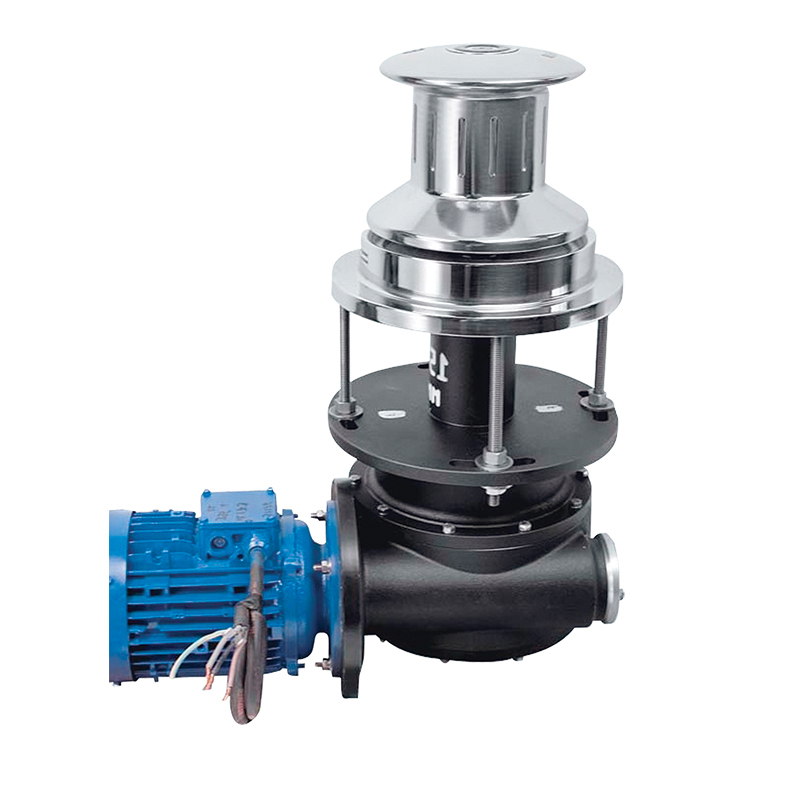

T4000-CAPSTAN Lofrans’
0.00฿
Main Features
♦Luxury 3 16L Stainless Steel base and drum
♦Heavy duty electric motor
♦Anodised marine aluminium gearbox
Out of stock
ใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line id : @gtmmarine
T4000-Capstan Lofrans’
| Code | 24-00228 | 24-00258 | 24-00116 |
| Model | T3000 | ||
| Motor Size | 3500W | 4000W | 5500W |
| Power Supply (V) | 24 | 230-400 | 230-400 |
| Maximum Pull (Kg) | 4500 | 5000 | 5000 |
| Working Load (Kg) | 850 | 850 | 1200 |
| Amps at Working Load (A) | 215 | – | – |
| Line Speed at Working Load (m/min) | 10 | 10 | 11 |
| Max Line Speed (m/min) | 15 | 10 | 11 |
| Net Weight with Drum (Kg) | 120 | 120 | 105 |
| Hydraulic Pressure (Bar) | – | – | 200 |
| Hydraulic Flow (lt/min) | – | – | 40 |

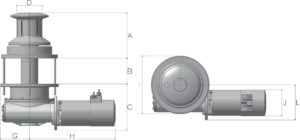

Product Dimensions (mm)
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T4000 | 267 | 150 | 272 | Ø150 | 170 | 502 | Ø340 | Ø154 | 206 |
