T2000-CAPSTAN Lofrans’
0.00฿
Main Features
♦Luxury chromed bronze construction base and drum
♦Heavy duty electric motor
♦Anodised marine aluminium gearbox
Out of stock
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments

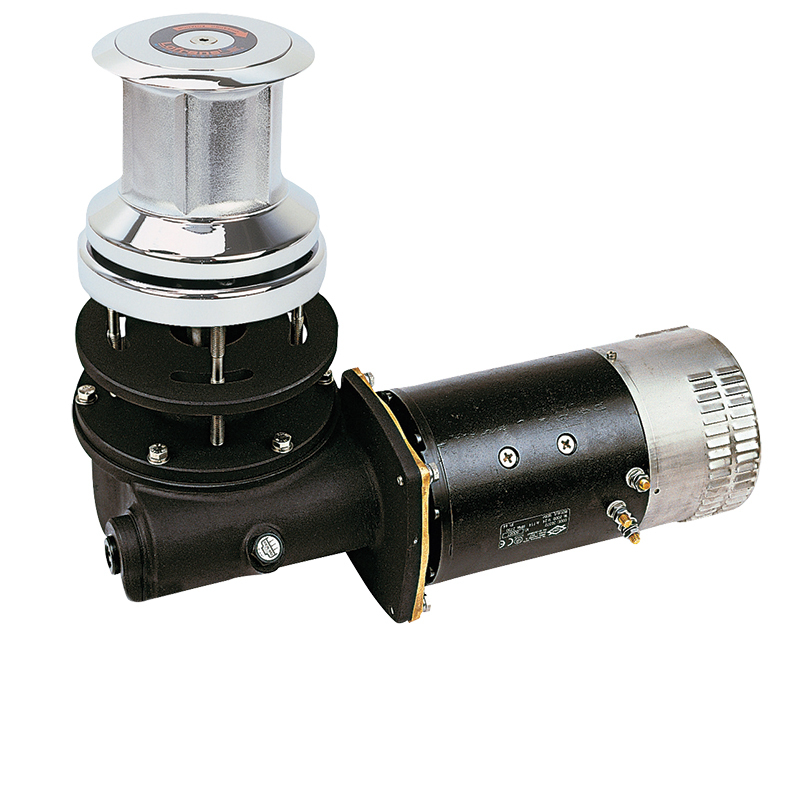

T2000-Capstan Lofrans’
| Model | T2000 | |||
| Motor size | 2200W | 2300W | Hydraulic-9cc | |
| Type** | cw | cw | ccw | cw |
| Power Supply (V) | 230-400 | 24 | 24 | – |
| Maximum Pull (kg) | 2000 | 2000 | 2000 | 2300 |
| Working load (kg) | 410 | 410 | 410 | 510 |
| Amps at Working Load (A) | – | 180 | 180 | – |
| Line Speed at Working Load (m/min) | 15 | 15 | 15 | 15 |
| Max Line Speed (m/min) | 15 | 31 | 31 | 15 |
| Net Weight with Drum (kg) | 52 | 52 | 52 | 40 |
| Hydraulic Pressure (bar) | – | – | – | 200 |
| Hydraulic Flow (lt/min) | – | – | – | 32 |
| Control Box | Switchboard available separately | Included in package | – | |
Product Dimensions (mm)
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T2000 | 190 | 60-90 | 212 | Ø125 | 105 | 420 | Ø194 | Ø152 | 176 |
