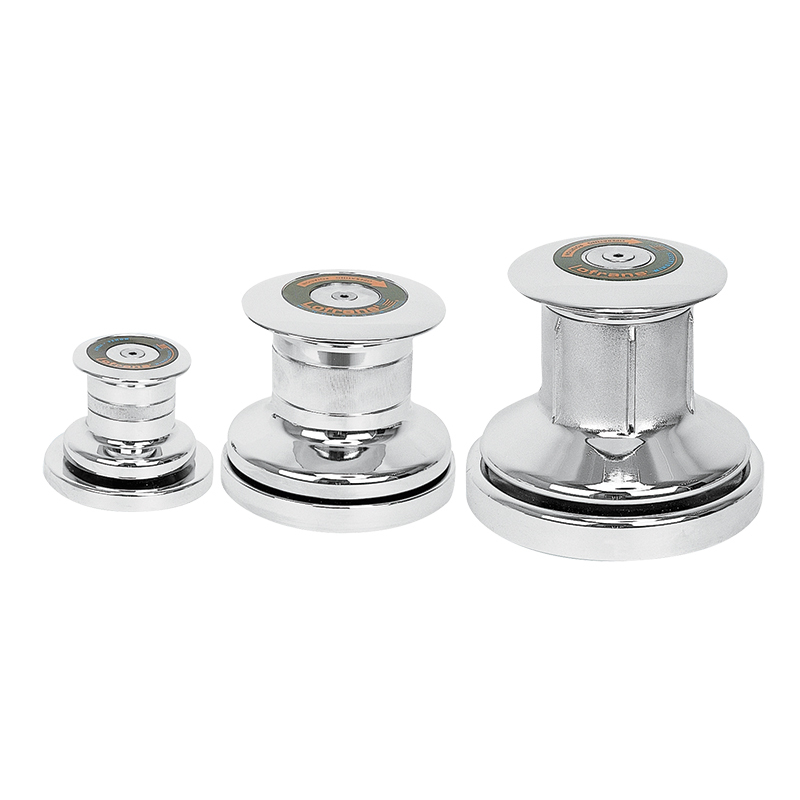

T1700-CAPSTAN Lofrans’
0.00฿
Main Features
♦Motor IP-rating (12/24V): 66
♦Anodised marine aluminium gearbox
♦Control Box included in package
♦Circuit Breaker (available separately)
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
T1700- Capstan Lofrans’
| Construction | Chromed Bronze | Aluminium | ||
| Model | T1700 | |||
| Motor Size | 1700W | |||
| Power Supply (V) | 12 | 24 | 12 | 24 |
| Maximun Pull (kg) | 1600 | 1695 | 1600 | 1695 |
| Working load (kg) | 270 | 270 | 270 | 270 |
| Amps at Working Load (A) | 180 | 90 | 180 | 90 |
| Line Speed at Working Load (m/min) | 14 | 15 | 14 | 15 |
| Max Line Speed (m/min) | 32 | 32 | 32 | 32 |
| Net Weight with Drum (kg) | 30 | 30 | 25 | 25 |

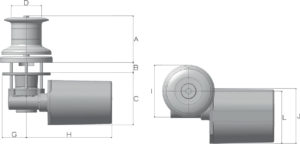

Product Dimensions (mm)
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T1700 | 162 | 50-70 | 165 | Ø104 | 90 | 300 | Ø191 | Ø127 | 140 |
