CT45/  CT80/  CT100/  CT125/  CT165/ CT225

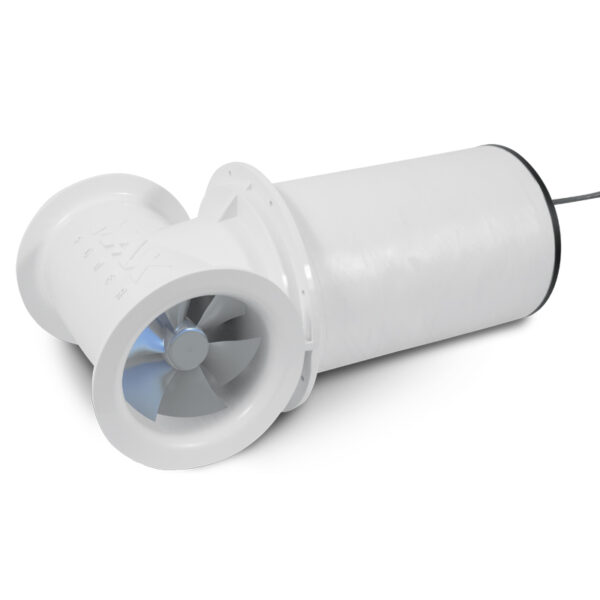

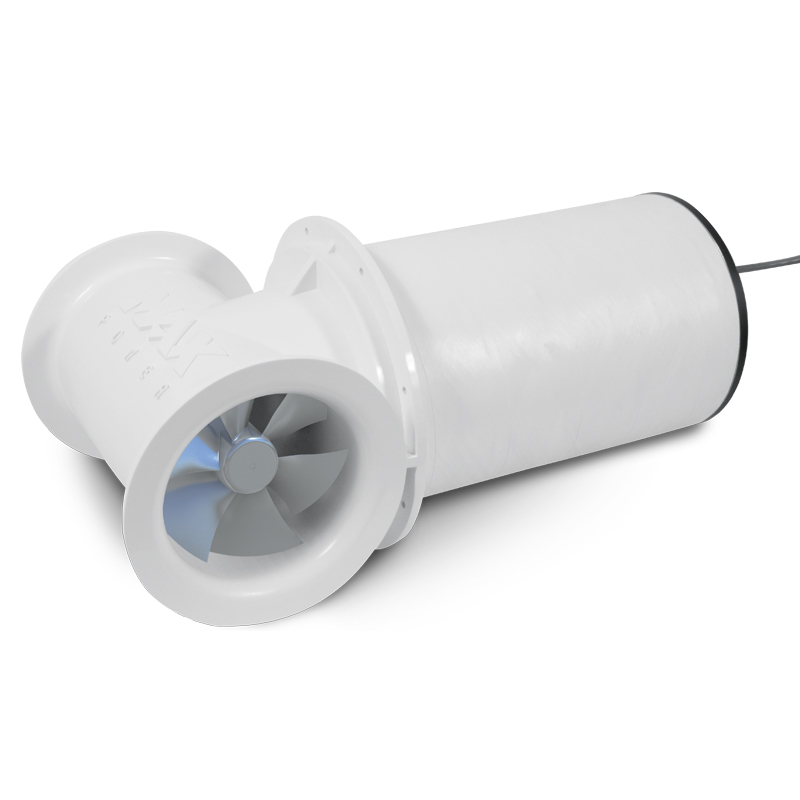

The Max Power Stern Pod offers an innovative solution to the often difficult task of installing a thruster into the stern of modern motor yachts.

Combining a dry area on the stern with correct immersion depth and sufficient access is often a challenge.

Designed with these constraints in mind, Stern Pod units can be installed entirely from the outside of the transom, reducing greatly the need for inside access. This allows greater immersion depth to be achieved.

The Stern Pod housing is waterproof and ignition protected (ISO 8846) designed to withstand the corrosive damp atmosphere of the bilge. Entirely assembled and tested in our factory, Stern Pod units guarantee long term trouble-free operation with only minimal maintenance care.

Main Features

*Case hardened spiro-conical gears.

*Ignition protected and water resistant

*Watertight seals ensure extra protection

*Easy external installation

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

CT45/  CT80/  CT100/  CT125/  CT165/ CT225

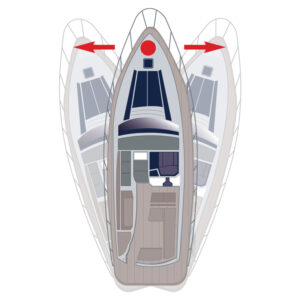

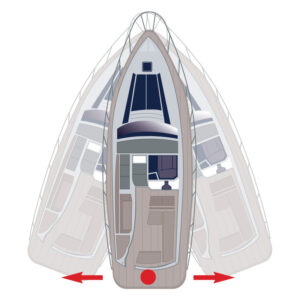

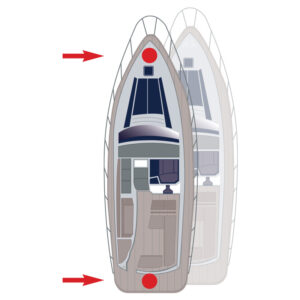

Bow thruster alone     Stern thruster alone      Bow & Stern thrusters    Bow & Stern thrusters

Product Description

Model CT45 CT80 CT100 CT125 CT165 CT225
Boat Size (m) 6-10.5 8.5-14 9.8-15.5 10.5-18 12-20 14-22
Voltage (V) 12 12 24 12 24 24 24
Thrust up to (kg) 45 69 75 96 115 160 195
Power (kW/hp) 3.2/4.3 4.8/6.4 5.3/7.1 7.1/9.5 8.6/11.5 11.9/15.9 15/20
Weight (kg) 21 31 31 41 41 61 61
