R300 SYSTEM HYDRAULIC RETRACTABLE THRUSTER
0.00฿
(R300/15)-(R300/21)
Newly redesigned, the R300 now benefits from evolutions already pioneered on the R450. Both light and powerful this unit has been consistently specified by designers around the world for many years and is ideal for yachts from 60-104′.
Main Features
*Retract to leave smooth hull lines
*When deployed ideal immersion depth is achieved
*Water resistant
*Allow ideal weight distribution
*Ideal for high performance yachts
*Unique patented folding movement
*Case hardened Spiro-conical gears
*Lightweight design
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE

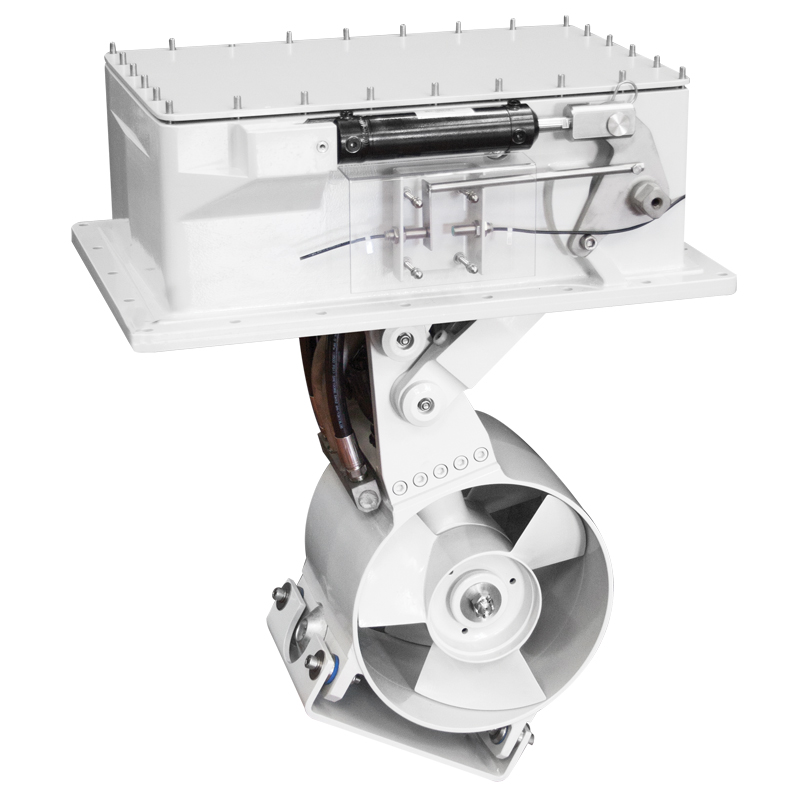

R300 System Hydraulic Retractable Thruster
Product Description
| Thrust | 11 kg per kw | ||||
| Max. hydraulic power (kw) | 25 | ||||
| Propellers | Duo, 3 blades | ||||
| Weight (kg) | 73 | ||||
| Model Code | HP | KW | Flow | Pressure | Motor |
| R300/15 317807 | 14.74 | 11 | 29 LPM | 240 B | 15 cc |
| R300/21 317809 | 23.59 | 17.6 | 44 LPM | 240 B | 21 cc |
Product Dimensions in (mm)
| Model | A | B | C | D | E |
| R300 | 665 | 500 | 450 | 300 | 360 |
