(R200/6)-(R200/8)
Benefiting from a control system redesign, the R200 is the smallest model in the Max Power Retract™ range. Designed for top end production boats, this hydraulic re-tractable thruster has long been installed in prestigious yachts ranging from 45-68′.
Main Features
*Retract to leave smooth hull lines
*When deployed ideal immersion depth is achieved
*Water resistant
*Allow ideal weight distribution
*Ideal for high performance yachts
*Unique patented folding movement
*Case hardened Spiro-conical gears
*Lightweight design

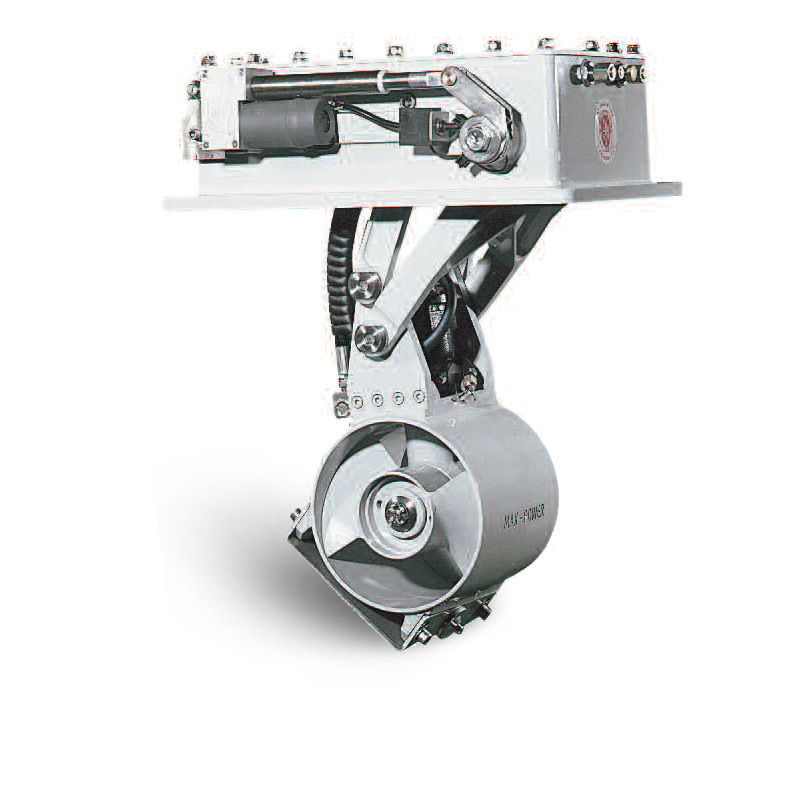

R200 Sytem Hydraulic Retractable Thruster
Product Description
| Thrust | 10 kg per kw | ||||
| Max. hydraulic power (kw) | 13 | ||||
| Propellers | Duo, 2 blades | ||||
| Weight (kg) | 35 | ||||
| Model Code | HP | KW | Flow | Pressure | Motor |
| R200/6 317801 | 10.72 | 8 | 22 LPM | 220 B | 6 cc |
| R200/8 317802 | 16.08 | 12 | 30 LPM | 240 B | 8 cc |

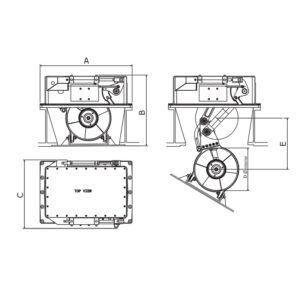

Product Dimensions in (mm)
| Model | A | B | C | D | E |
| R 200 | 500 | 355 | 320 | 300 | 255 |
