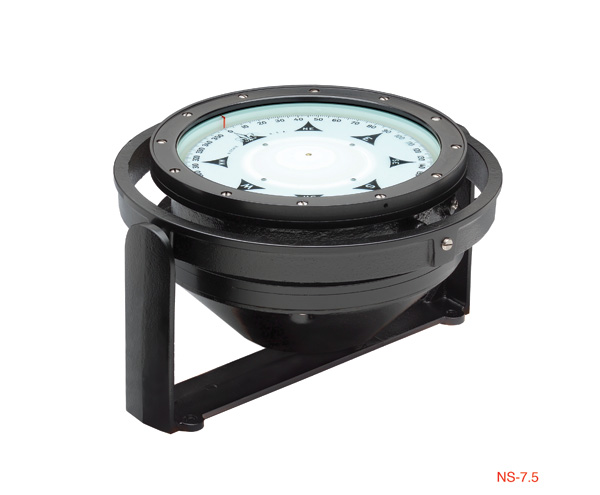

NAVY STANDARD 7.5 YOKE MOUNT

฿0.00

Originally used on Navy and Merchant ships the 7 ½” Navy Standard compasses continues to have the highest grade materials and workmanship.  The bezels are machined to accept the AC-001 Azimuth Circle.  With four configurations the Navy Standard compasses fit most binnacles and steering stations.

Navy Standard Features:

-Dial 7.5″ (192mm)

-1 degree increments with cardinal and inner cardinal markings

-Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

-Navy standard azimuth circle or bearing circle part# AC-0001 available

-Meets or exceeds Solas ISO Class A compass requirements

-Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

-12, 24, 32 VDC and 110 VAC lighting included

-100% Repairable

-Exclusive 5-Year Ritchie Warranty

Replacement Lighting Kit: NS-0050 ASY

Approx. Shipping Weight: 19 lbs. (8.6 kg)

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,



Dimensions:

  • A: Width 12 1/2″
  • B: Depth 11 3/4″
  • C: Height 9 3/8″











 Code: NS-7.5
