Originally used on Navy and Merchant ships the 7 ½” Navy Standard compasses continues to have the highest grade materials and workmanship.  The bezels are machined to accept the AC-001 Azimuth Circle.  With four configurations the Navy Standard compasses fit most binnacles and steering stations.

Navy Standard Features:

-Dial 7.5″ (192mm)

-Yoke Mount with Quadrantal spheres

-1 degree increments with cardinal and inner cardinal markings

-Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

-Navy standard azimuth circle or bearing circle part# AC-0001 available

-Meets or exceeds Solas ISO Class A compass requirements

-Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

-12, 24, 32 VDC and 110 VAC lighting included

-100% Repairable

-Exclusive 5-Year Ritchie Warranty

Replacement Lighting Kit: NS-0050 ASY

Approx. Shipping Weight: 43 lbs. (19.5 kg)

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

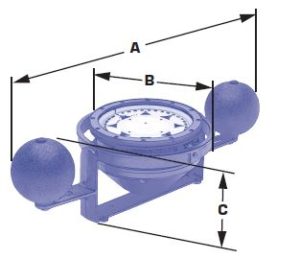

  • A: Width 25″ (635 mm)
  • B: Depth 12 1/2″ (318 mm)
  • C: Height 9 3/8″ (238 mm)

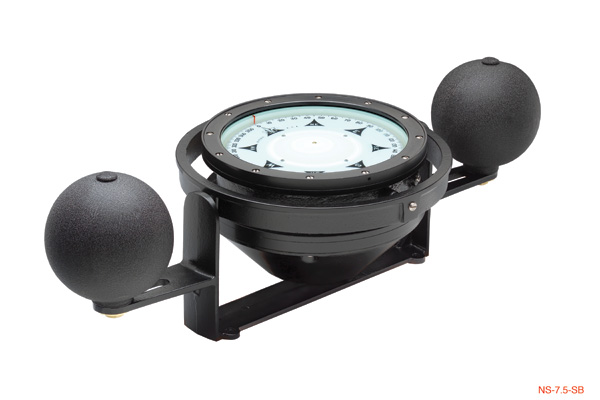

Code: NS-7.5-SB
