Navy Standard Features

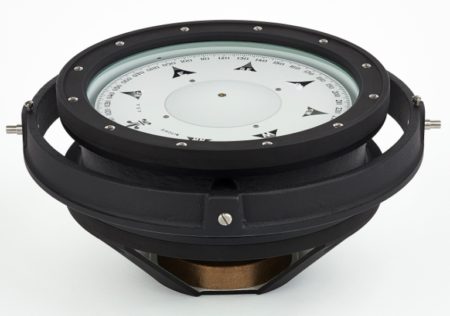

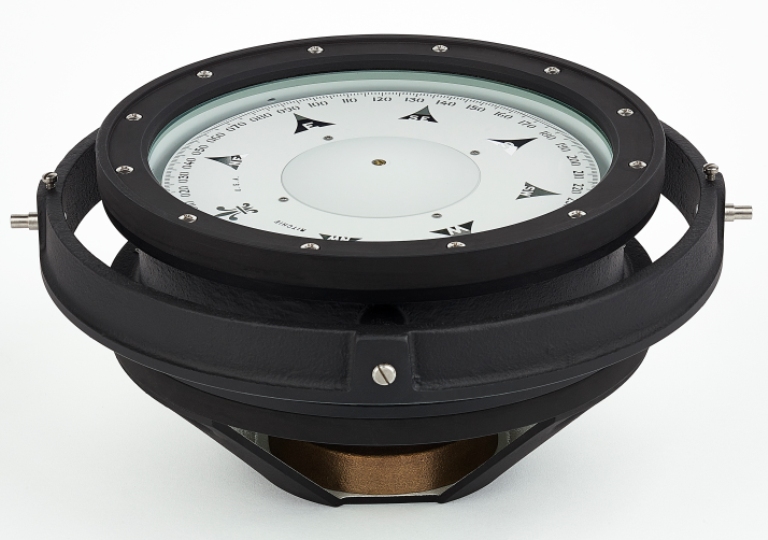

-The Ritchie Projector/Reflector binnacle compass is specially designed:

-For mounting in Projector/Reflector Binnacles

-Dial 7.5″ (192mm) Numerals and degrees acid etched for optical clarity when projected and may be used as a steering compass

-1 degree increments with cardinal and inner cardinal markings

-Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

-Bezel machined to accommodate 7.5″ Navy standard azimuth circle or bearing circle

-Meets or exceeds Solas ISO Class A compass requirements

-Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

-12, 24, 32 VDC and 110 VAC lighting included

-100% Repairable

-Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 16 lb. (7.26 kg)

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,



  • A: Width 12 1/2″
  • C: Height 9 3/8″





Code: NS-7.5-PRJ
