Mini Body Heavy Duty Brass Toggle Switch

Heavy Duty Toggle Swtiches widely used in marine applications. This is the shortened body version of the popular T-13xx Series with the same heavy-duty life and amperage rating (up to 15A).

Features

  • Short Body design saves mounting space
  • Current rating up to 15A (@12V DC)
  • Robust and durable toggle design
  • Available in PC (Quick) Terminals or Screw Terminals
  • Series-specific nameplates and rubber boot available

Specification

  • Rating (AC) | 125V 15A / 250V 10A
  • Rating (DC) | 12V 15A / 24V 10A
  • Contact R. | 50mΩ Max.
  • Insulation R. | DC 500V 100MΩ Min.
  • Dielectric Strength | AC 1500V 1minute
  • Electrical Life | 50,000 make and break cycles at full load

Product Coding

Product ID Type Switch Function
T-1331 SPST ON -OFF
T-1331M SPST (ON)-OFF

(ON): Momentary



 T-13 Series Screw Terminal
 T-13 Series Quick Terminal

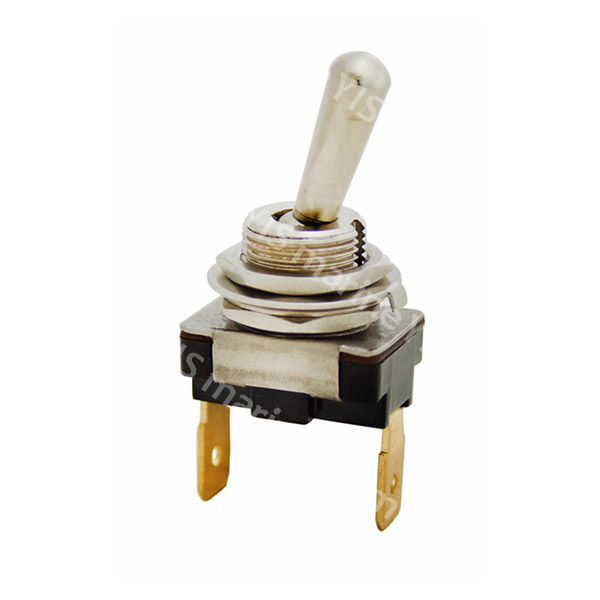

T-1331P (Quick Terminal) Product Dimensions
