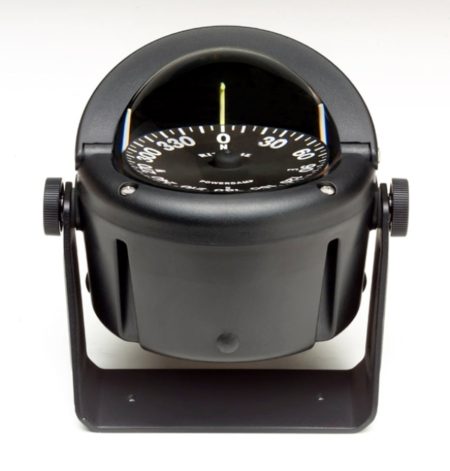

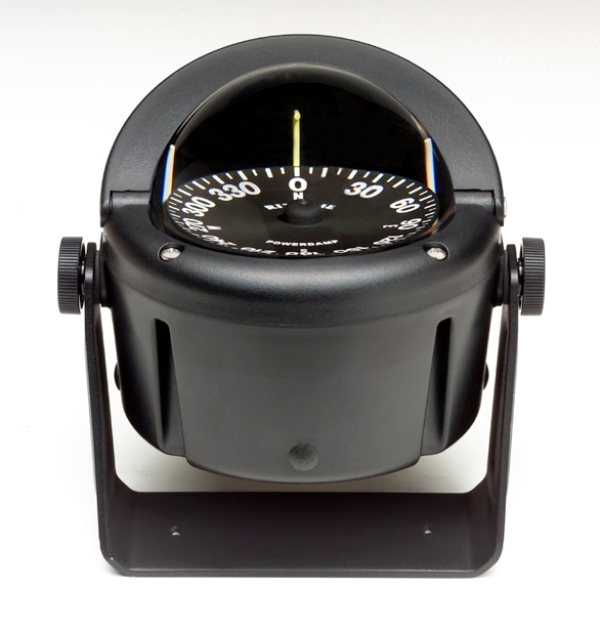

HELMSMAN BRACKET MOUNT

Code: HB-740

Helmsman Compass Features

             *3 3/4″ PowerDamp Flat Dial

             *Adjustable and Removable with Bracket and Thumbscrews

             *Exclusive Built-in Green NiteVu Night Illumination

             *Built-in Compensators to Easily Adjust for Deviation

             *Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement

             *Powerful DirectiveForce Magnets for Fast Heading Lock-on

             *Movable Sun Shield

             *45 Degree Lubber lines

             *High Temperature Composite Construction for Extended Operating Range

             *100% Repairable

             *Exclusive 5-Year Ritchie Warranty

Protective Cover: H-741-C

Replacement Lighting:

• (Green) SH-0195 KIT
• (Red) SH-0202 KIT

Replacement Bracket: HL-0252

Replacement Thumbscrews: HL-0094 ASY requires (2)

Approx. Shipping Weight: 2 lbs. (907g)

Notes: Comes standard with 12 volt lighting. 24 & 32 volt lighting options available. Some custom built OEM models may have different lighting.

For all Helmsman built before 1992 please see the service manual page 5-14 or contact Ritchie for replacement lighting.
