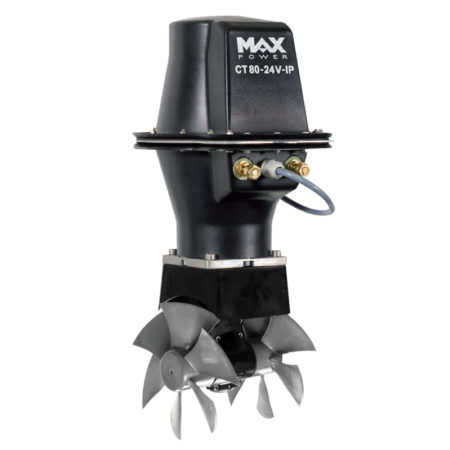

CT80-IP Ignition Protected Bow Thruster

Available in 12V or 24V, the CT80-IP is perfectly suited to motor boats and deep footed sailing yachts in the popular 25’-44’ size range. With its 185mm tunnel diameter and thrust rating of up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range.

Ignition protected thrusters  are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part. This feature provides optimal ignition protection because it doesn’t allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.

Main Features

*Ignition Protected to ISO 8846 and water resistant

*Easy to connect thruster

*Patented composite drive leg

*Zero maintenance

*Case hardened Spiro-conical gears

*Line shields

*Purpose but DC motors

*Electronic control boxes for unrivalled safety features

*Safe, high power connections

*Purpose built high specifications DC contractors

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,
CT80-IP Ignition Protected Bow Thruster

Product Description

Code Voltage Thrust (kg/lbs) Propellers Power (kw/hp) Weight (kg)
317613 12V 69/152 Duo 4.79/6.4 17.6
317614 24V 75/165 Duo 5.28/7.1 17.6

Product Dimensions in (mm)

Model A B C D E
CT80-IP 320 255 375 185 6-7
