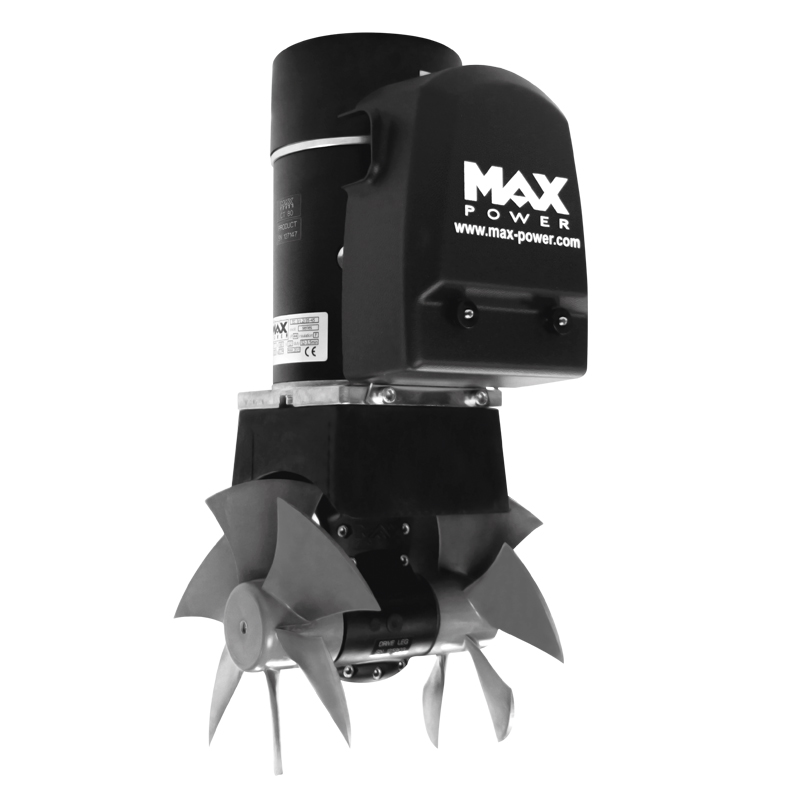

This composite, twin propeller, DC tunnel thruster is undeniably the best selling model in the Max Power electric tunnel thruster range. Available in 12V or 24V, the CT80 is perfectly suited to motor yachts and deep footed sailing yachts in the popular 25’-44’ size range.
With its 185mm tunnel diameter and thrust rating up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range and is fitted as standard on a large variety of yachts.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
