CT45 ELECTRIC TUNNEL THRUSTER
0.00฿

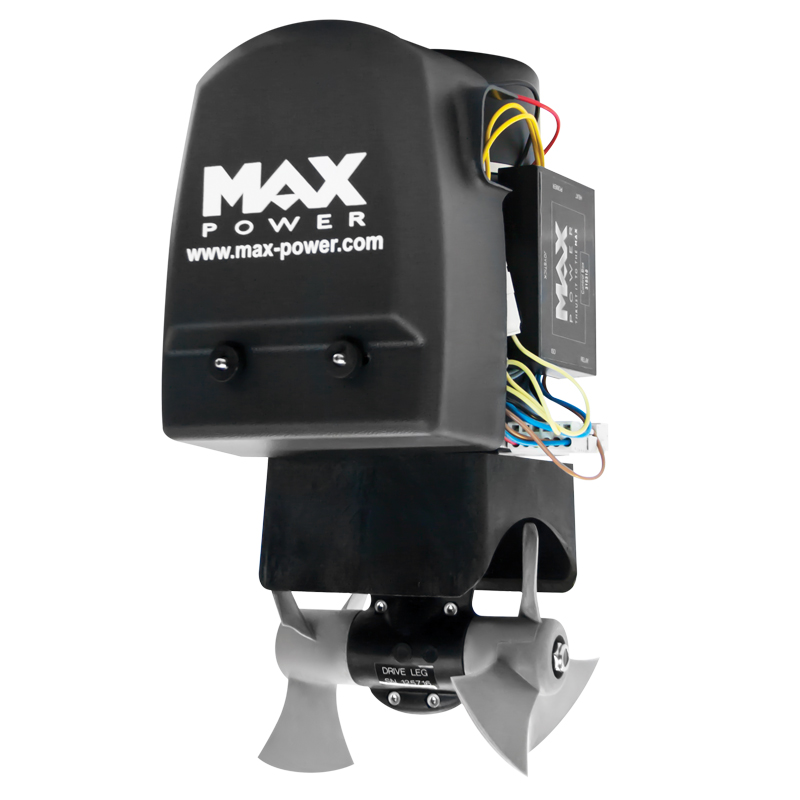

CT45 Electric Tunnel Thruster
Code: 317603
The CT45 is ideal for motor boats and deep footed sailing yachts ranging from 19’-36′. Manufactured using composite materials, the CT45 has a 125mm diameter tunnel.
As small and compact as the CT35, the CT45 benefits from an increased thrust rating up to 40/88 (kg/lbs) thanks to its twin propellers.
Easy to install and maintenance free, this model integrates all the unique features common to Max Power’s electric tunnel thrusters.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
CT45 Electric Tunnel Thruster
Product Description
| Voltage | Thrust (kg/lbs) | Propellers | Power (kw/hp) | Weight (kg) |
| 12V | 39/88 | Duo | 3.23/4.3 | 9.65 |

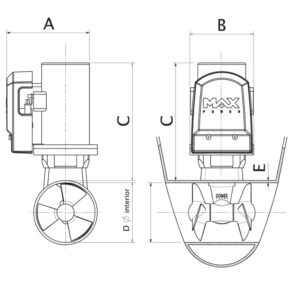

Product Dimensions in (mm)
| Model | A | B | C | D | E |
| CT45 | 190 | 140 | 210 | 125 | 4-5 |
