CT35-IP Ignition Protected Bow Thruster

The smallest in the Max Power Ignition Protected tunnel thruster range, the CT35-IP is ideally suited to motor boats and deep footed sailing yachts ranging from 17’ to 34′.

Manufactured using composite materials, the CT35-IP is a single propeller thruster with a 125mm diameter tunnel and thrust rating of up to 35/75 (kg/lbs).

Like all Max Power Ignition Protected tunnel thrusters, the CT35-IP is easy to install, maintenance free, and integrates all the unique features common to this range.

Ignition protected thrusters  are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part. This feature provides optimal ignition protection because it doesn’t allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.

Main Features

*Ignition Protected to ISO 8846 and water resistant

*Easy to connect thruster

*Patented composite drive leg

*Zero maintenance

*Case hardened Spiro-conical gears

*Line shields

*Purpose but DC motors

*Electronic control boxes for unrivalled safety features

*Safe, high power connections

*Purpose built high specifications DC contractors

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

CT35-IP Ignition Protected Bow Thruster

Product Description

Code Voltage Thrust (kg/lbs) Propellers Power (kw/hp) Weight (kg)
317609 12v 35/77 Mono 2.69/3.6 11.6

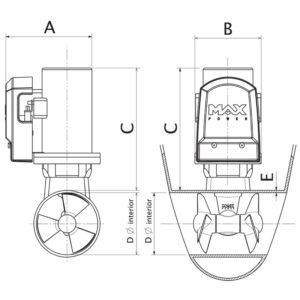

Product Dimensions in (mm)

Model A B C D E
CT35-IP 301 230 295 125 4-5
