COMPLETE PACKAGE SYSTEM (MO 100H Type)

Main Features

*Standard wheel turns: 4.5 lock to lock

*For small engine under 95hp

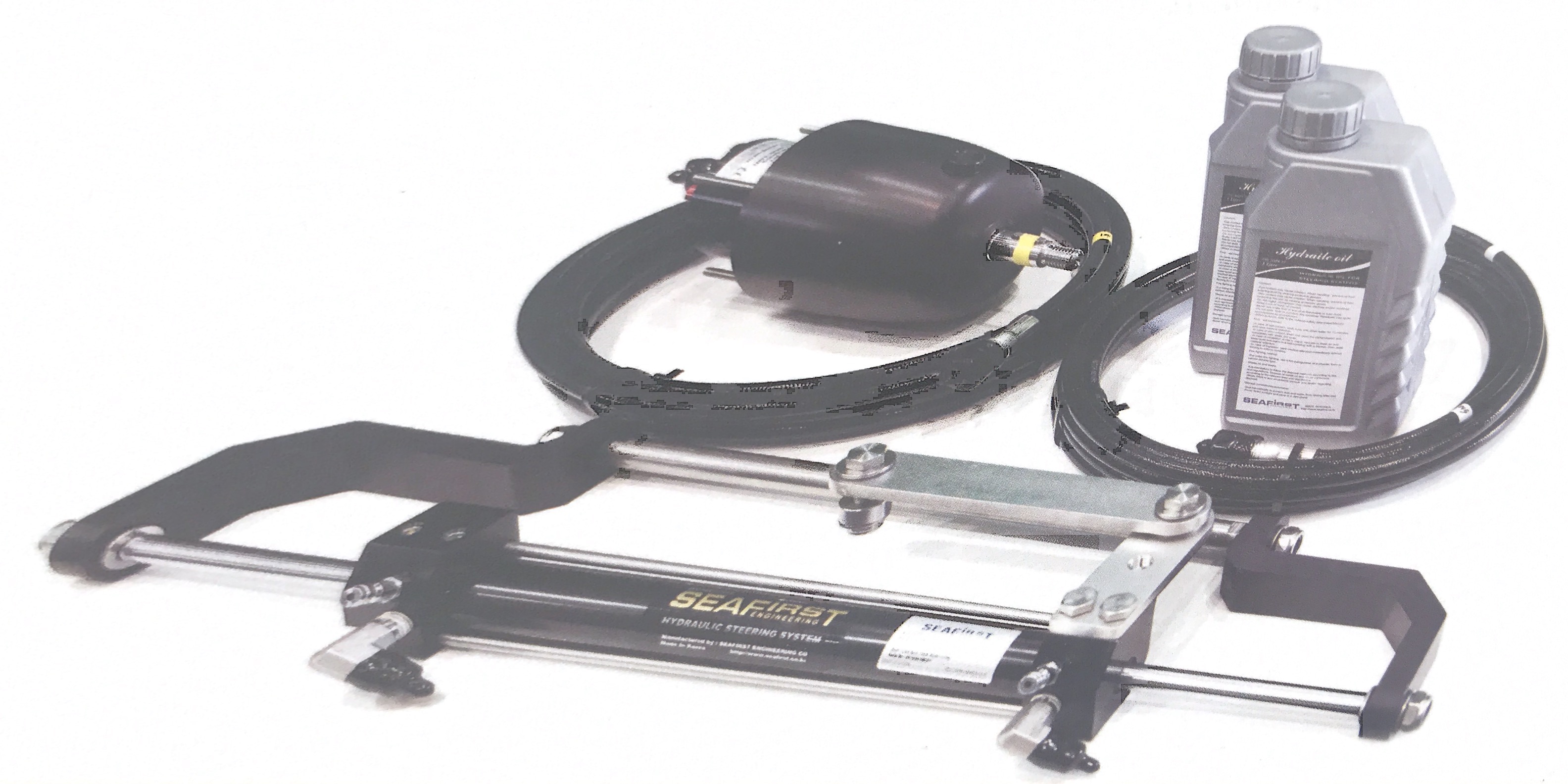

Steering Kits Include

1.) NSH 018 Helm Pump. Front Mount Helm pump 18cc

2.) SOC 2512H Cylinder. Front Mount Outboard cylinder. When ordering, specify the engine model.

3.) SF OIL 15 Hydraulic Hose. Hydraulic Hose 1/4, 6 meter x 2 pcs.

4.) Accessories Included. Helm pump fittings, Helm pump mounting hardware kit, Accessories kit 0AK-100 (Bleed tube, Funnel, Oil supply tube)

*The Steering Wheel is not included in the package.

Caution: Cut the Wing Nut type transom mount clamping screw if any. It could be interfaced with cylinder when fully trim.
