INLINE SERIES FLANGE 7″ VERSION A

0.00฿

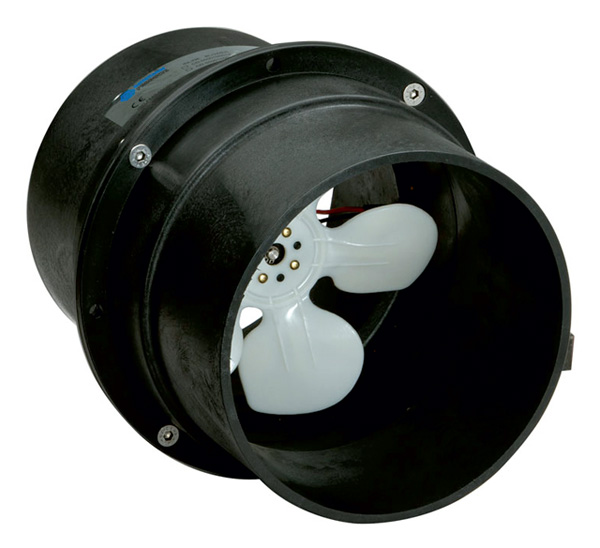

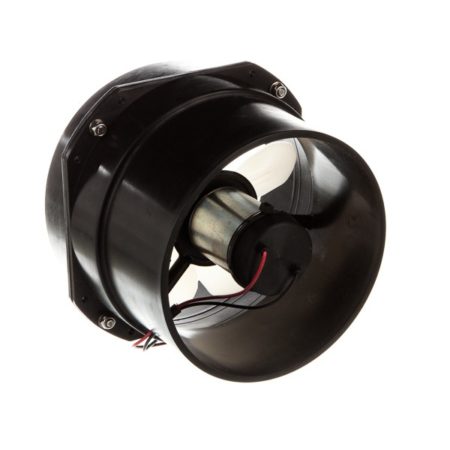

Inline Series Flange 7″ Version A

12V/  24V

A modern range of inline blowers utilizing advanced fan blade design technologies suitable for bulkhead mounting and for receiving 178 mm. diameter hoses.The first vane axial-flow bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers on the market provides such a powerful system output at such a low power input in so a compact size. Silent operation. For added durability, Matromarine incorporated an engineered plastic housing that withstands deformation during installation and shelters blade from housing interference. Compling with ISO 8846,EN 55014.

Out of stock

ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine

  • Check Mark Facebook page: GTM MARINE
Categories: ,

Features:

  • Compact and simple design
  • Flexible installation
  • Low power consumption
  • Quiet operation
  • Mets Iso en55014 standards
  • Five blade design maximizes flow performance
  • Long Motor lifetime from powerful airflow cooling.

Inline Series Flange 7″ Version A 12V/ 24V

Code Volt Amp Capacity MCH/CFH Usage Port Connection Dimensions (Large x Height x Height)
11-00061 12 5 750/441 Intermittent 178mm 250×220 Hose 178mm
11-00062 24 2,5 750/441 Intermittent 178mm 250×220 Hose 178mm
11-00065 12 7 1000/589 Continuous Duty 178mm 250×220 Hose 178mm
11-00066 24 3,5 1000/587 Continuous Duty 178mm 250×220 Hose 178mm
