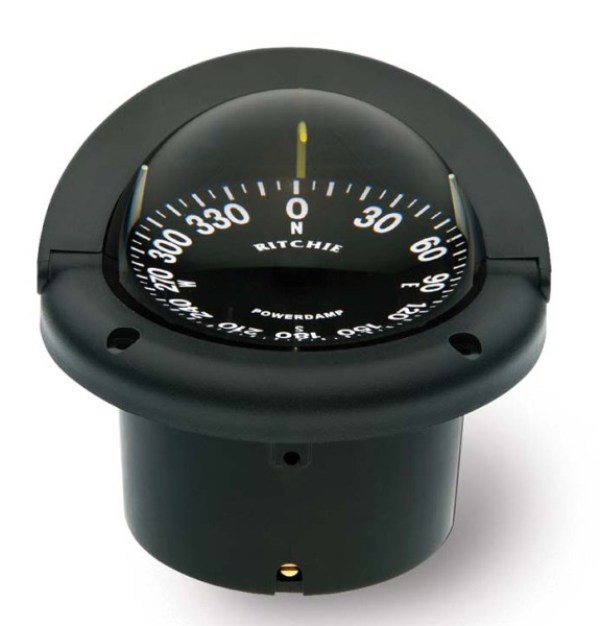

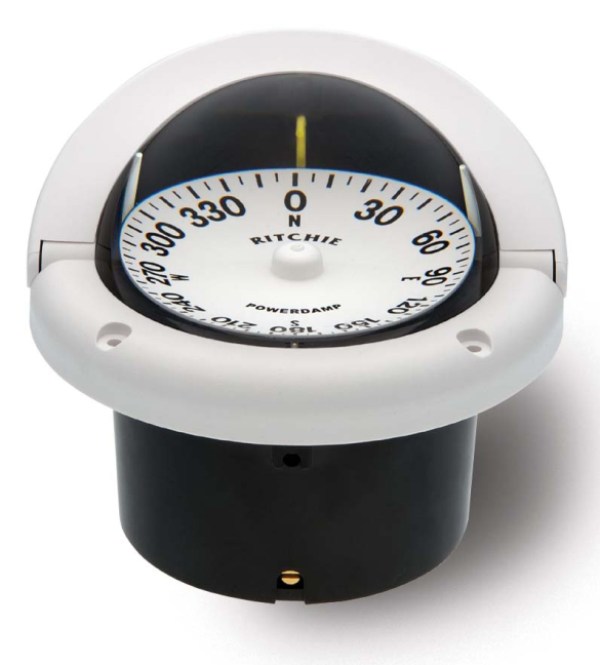

HELMSMAN FLUSH MOUNT

Helmsman Compass Features

• 3 3/4″ PowerDamp Flat Dial
• Easily Installed, Fits 4″ (10.16 cm) Mounting Hole.
• Exclusive Built-in Green NiteVu Night Illumination
• Built-in Compensators to Easily Adjust for Deviation
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Composite Construction for Extended Operating Range
• Adapter Rings Available. Sold separately. 6″ (15.24). Retrofits Existing Mounting Hole for Model No. HF-72 order H-ABLK. For Model No. HF-72W order H-AWHT.
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Protective Cover: H-741-C

Replacement Lighting:

• (Green) SH-0195 KIT
• (Red) SH-0202 KIT

Mounting Gasket: HL-0219

• Use HL-0105 mounting gasket when an adapter ring is installed on the compass

Approx. Shipping Weight: 2 lbs. (907g)

Notes: Comes standard with 12 volt lighting. 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting.

For all Helmsman built before 1992 please see the service manual page 5-14 or contact Ritchie for replacement lighting.
