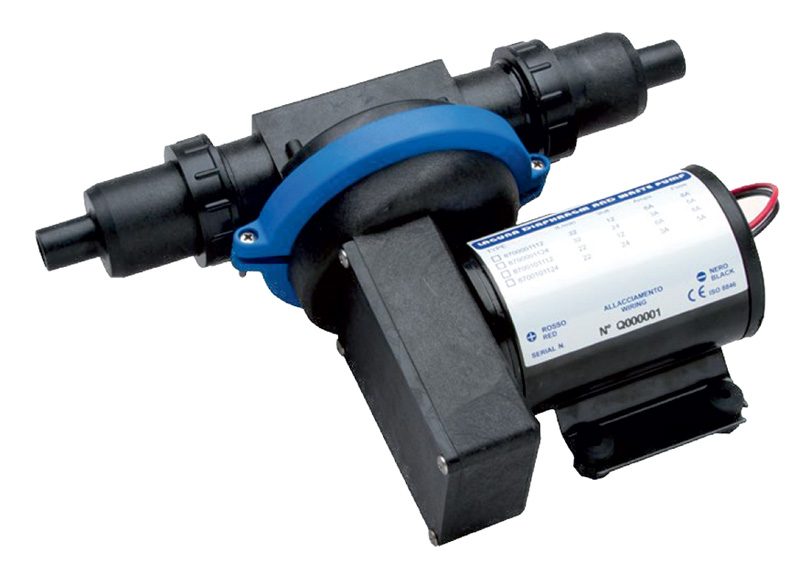

GREY AND BLACK DIAPHRAGM WATER PUMP

0.00฿

12V/   24V

A modern diaphragm pump that can be set up in several applications and with different pump motor configurations.It is easy to install as a bilge pump in any leisure craft or anywhere after the drain outlet in the waste water system or directly in the Matromarine waste water tank . No filters required, the pump can run dry, and can also handle a mixture of air and water without difficulty. Perfect for installation in tight spaces, the Laguna shower drain pump can be incorporated into a small boat bilge space. Available in version with double 19/25 mm port connection and 38 mm port connection. 38 mm version is equipped with straight and 360 degrees angled rotational port connection.

Out of stock

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments

Main Features

  • Compact and simple design
  • Flexible installation
  • No filter required
  • Can run dry
  • Can pump air/water mixture
  • Low power consumption
  • Quit operation
  • Meets ISO 8846 EN55014 Standards
  • 360 rotational pump body
  • Double non-return valve.

Grey Black Diaphragm Water Pumps

Code Volt Amp Flow LPM/Min Flow LPM/1,5 MT Hose Connection (mm) Dimensions (mm)
11-00276 12 4,5 22 18 19-25 Grey 305x195x125
11-00277 24 2,5 22 18 19-25 Grey 305x195x125
11-00272 12 6 32 26 38 Waste 305x195x125
11-00273 24 3 32 26 38 Waste 305x195x125
